24" Asko 40 Series Fully Integrated Panel Ready Dishwasher - DFI664

24" Asko 40 Series Fully Integrated Panel Ready Dishwasher - DFI664

Category : Dishwashers

SKU : DFI664

Ask for price

Scheduled Delivery

Literature

We have developed programs and run modes to assist you in all of your daily situations; crystal program for your delicate glasses, silent mode for washing during the night, speed mode for when you need it quickly, the intensive mode for the really tough dirt. All to make your daily life a little bit easier.

CONSTRUCTION

Welded stainless steel container
Exterior float - detects water leakage on the base
Stand by water protection
Anti-block drain pump
8 Steel™ Construction
Hidden heater
SCS+ - Super Cleaning System+™
Sensi Clean™ Sensor - measure dirtiness level
Number of spray arms: 3
Number of spray zones: 9
Jet Spray™ - Extra dishwashing power for bottles
Wide Spray™ - A spray zone for pots and pans
Cutlery Power Zone - extra dishwashing power for the cutlery basket

USE AND FLEXIBILITY

Number of place settings: 16 place settings
Number of baskets: 3

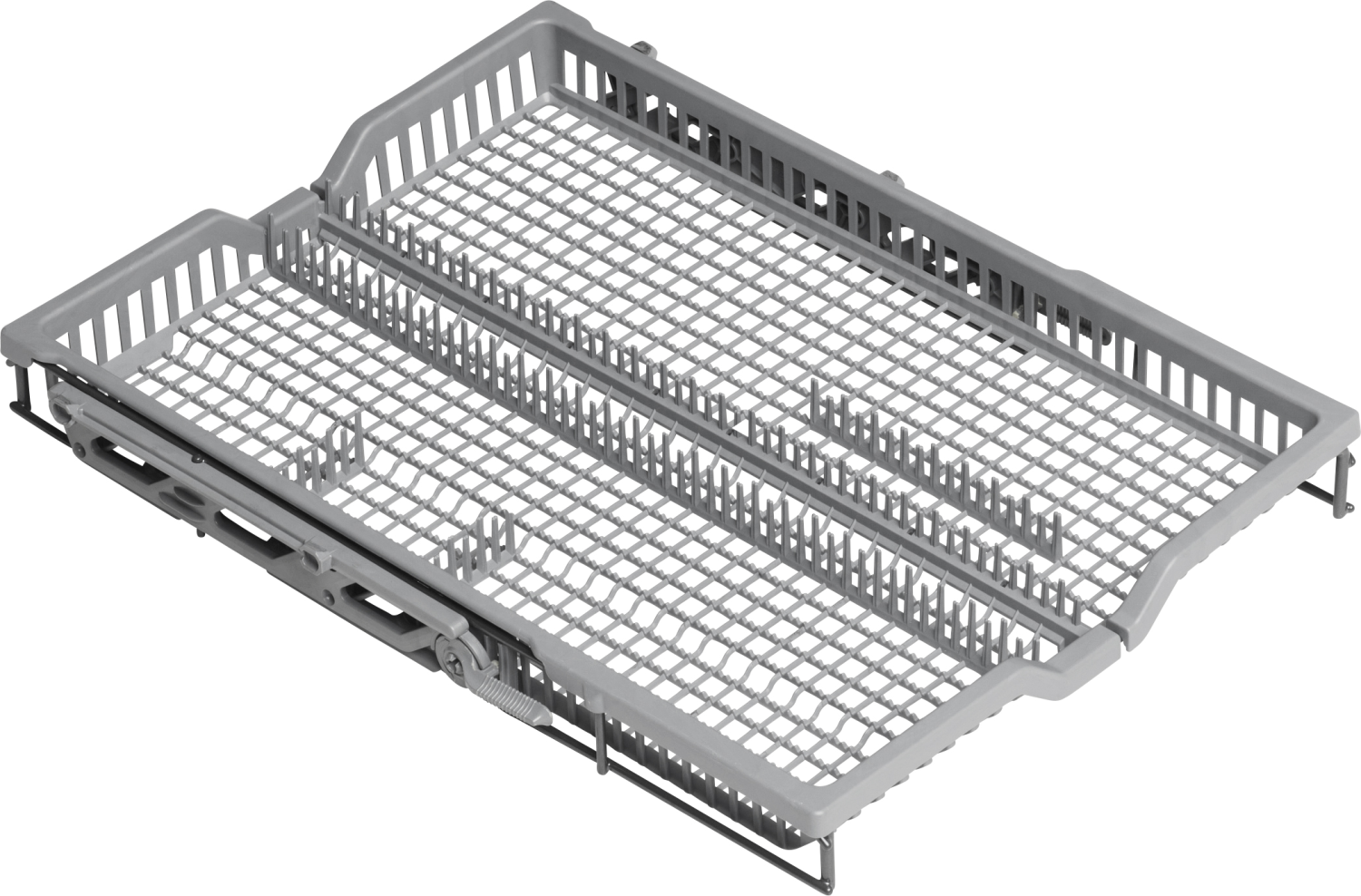

Top tray: Easy height adjustment; Divisible and removable baskets in top rack; With rack for knives and utensils; With rack for bowls and cups; With telescopic rails; Handle

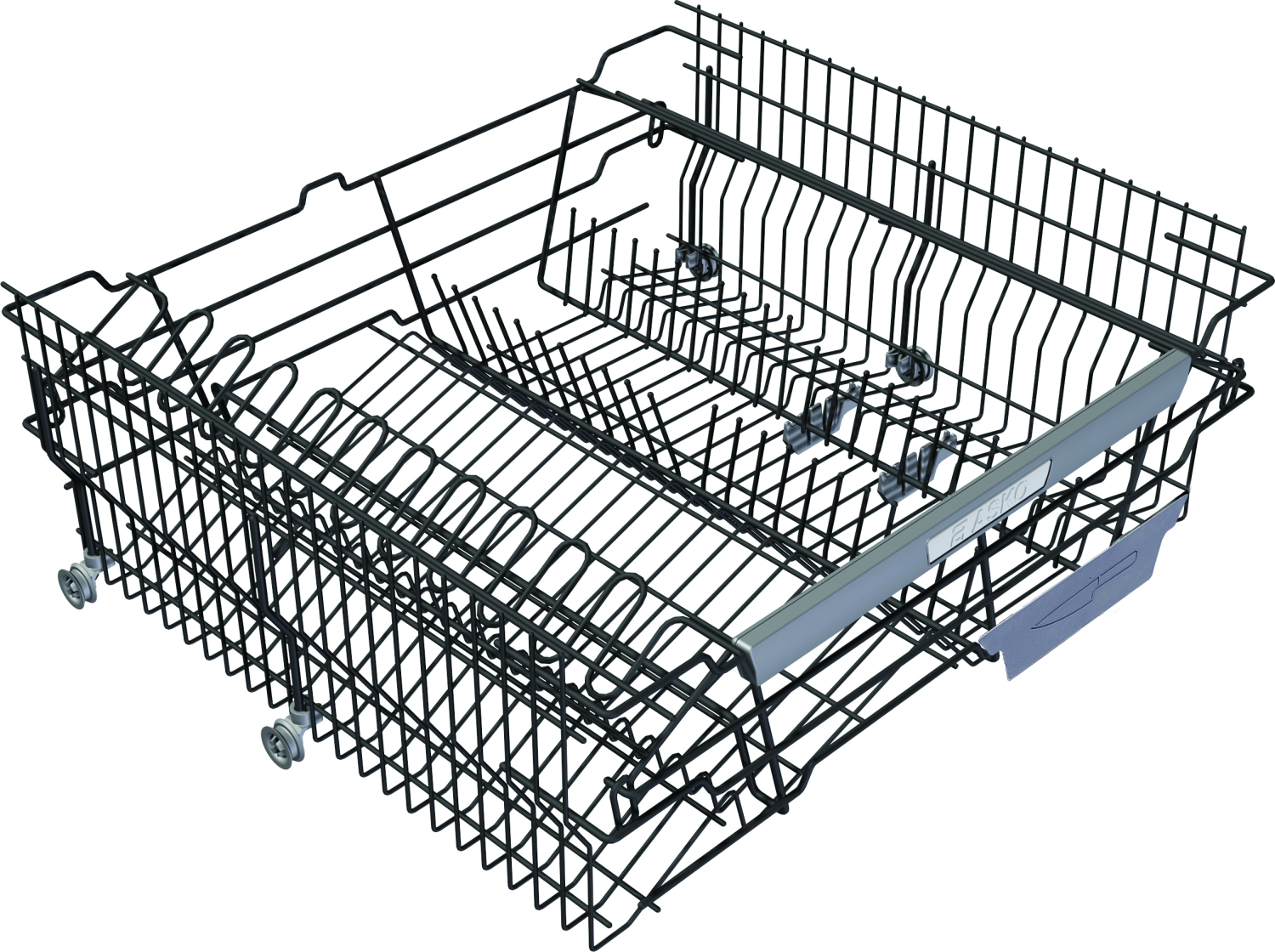

Upper basket type: Premium
Upper basket system: Height adjustable
Guide rails with ball bearings for upper basket

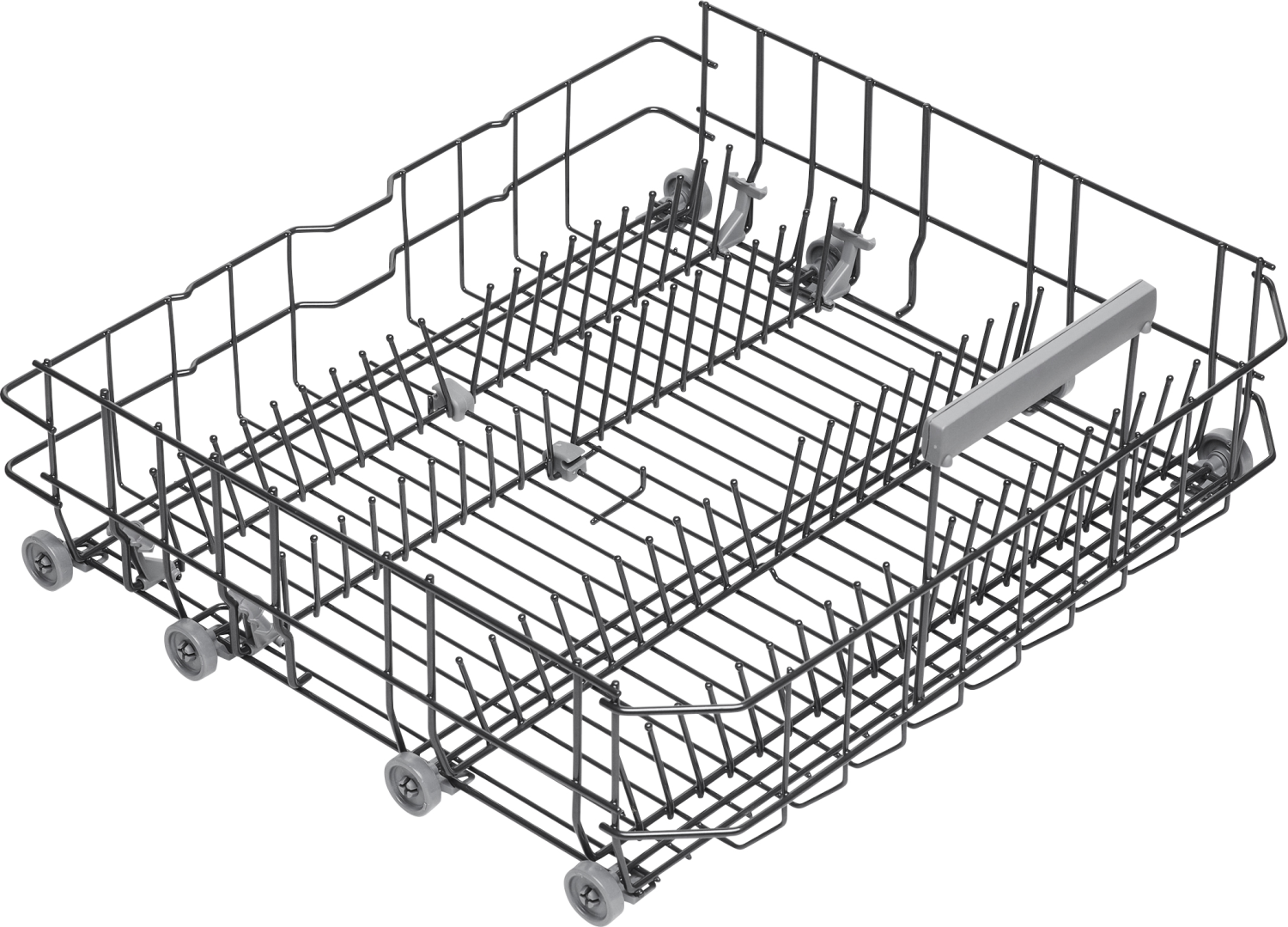

Lower basket type: Premium
Tight mesh base in the baskets

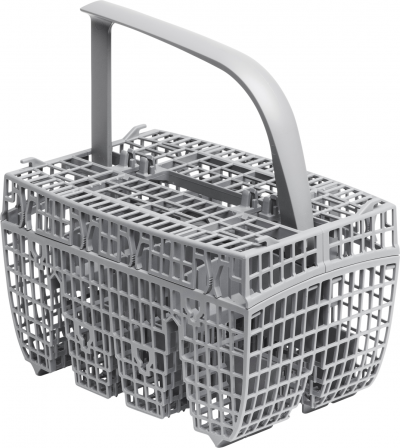

Removable cutlery basket for easy unloading
Required inlet water pressure: 0,03-1 MPa

INTERACTION & CONTROL

Display Type: LCD display
Ability to create own programs: Memory program
Number of programs: 11
Number of options: 8
Status LED light
Time remaining indicator: Time remaining indicator
Cycle end indication: Displayed with sound and light

PROGRAMS

11 programs: Normal wash; ECO wash; Hygiene wash; Time program; Plastic wash; Rinse and hold; Sanitation wash; Upper half; Lower half; Crystal glass; Self-cleaning
Delayed start: 1-24 hours
All in 1 tablet function
Normal mode
Time Set
Green mode
Speed mode
Night mode
Intensive mode
Extra Dry
High temperature
Normal mode

DESIGN & INTEGRATION

From front adjustable door spring
From front adjustable rear foot
Velcro strips
Trim kit
Multi fit outlet hose
Simplified installation with integrated anti-siphon
Height setting: 1 15/16” (50 mm)
Possible adjustment of kick plate: 30-94/0

SAFETY & MAINTENANCE

Aqua Safe™
Kid Safe™ - lockable controls
Rinse-aid indication: Notification in display

GENERAL DESCRIPTION
Drying method	Turbo Drying
Product line	Style

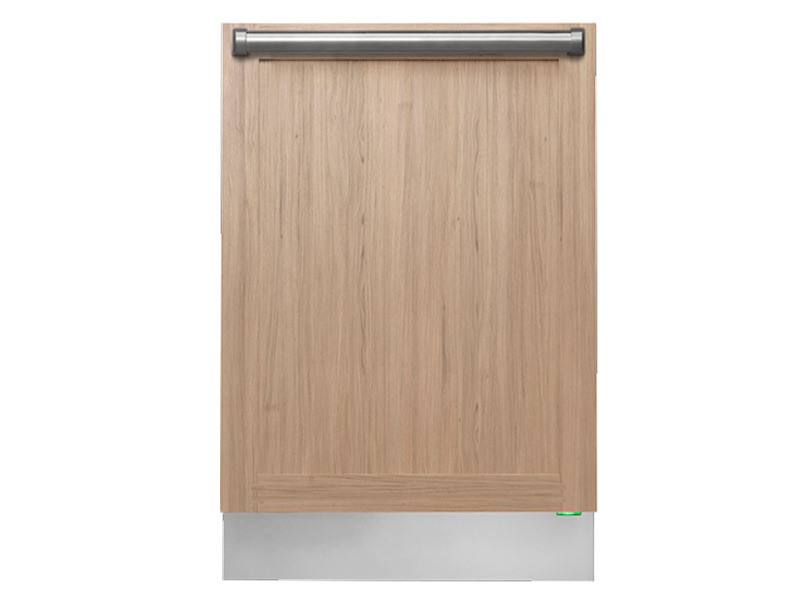

Mode of installation	Fully Integrated
Size	ADA height compliant
Number of baskets	3
Number of place settings	16 place settings
Icons	8 Steel™ construction, Super Cleaning System
Top tray	Easy height adjustment; Divisible and removable baskets in top rack; With rack for knives and utensils; With rack for bowls and cups; With telescopic rails; Handle
Upper basket type	Premium
Lower basket type	Premium
Cutlery basket	Removable cutlery basket for easy unloading
Technical data
Max. temperature of inflow water	140 F
Noise level	42 dB(A)
Reference program	1
Estimated yearly energy consumption	235 kWh
Energy consumption/cycle	1 kWh
Water consumption/cycle	3 US gal
Consumption in off mode	0.49 W
Consumption in standby mode	0.49 W
Connection rating	1300 W
Voltage (V)	120 V
Number of phases	1
Current	15 A
Frequency	60 Hz
Required inlet water pressure	0,03-1 MPa
Net weight	103 lbs
Marked for recycling	Marked for recycling
ISO 14001	ISO 14001
Specification
Product dimensions (HxWxD)	32 1/4” × 24” × 22” (819 × 609 × 559 mm)
Maximum product height	34 3/16” (869 mm)
Cord length	47 1/4” (1200 mm)
Depth with door open	47 3/16” (1198 mm)
Length of inflow hose	64 3/16” (1630 mm)
Length of outflow hose	90 9/16” (2300 mm)
LOGISTIC INFORMATION
Packaging dimensions	35 1/16” × 25 3/16” × 26 3/4” (890 × 640 × 680 mm)
Total weight of packaged product	110 lbs
code	728610
EAN code	3838782061646
