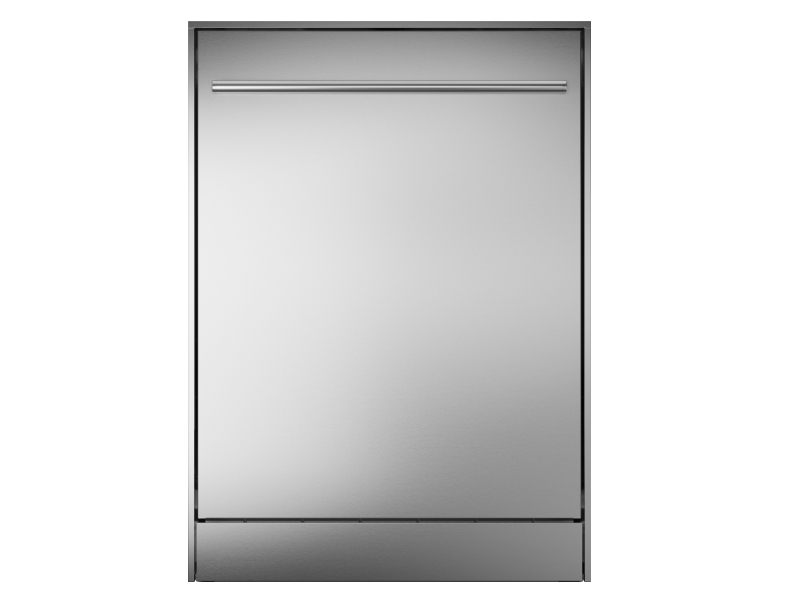

24" Asko Outdoor Built-In Dishwasher with Pro Handle - DOD561TXXL.S
With 12 month financing
We now offer financing powered by
You may also like
- Number of place settings: 16 pcs
- Number of racks: 3
- Upper basket type: Premium - Nylon coated steel baskets, fixed tine rows and foldable wine shelves for maximum longevity
- Size: XXL
- Residual heat
- Auto Door Open Drying™
- Automatic dosing system: No
- Installation: Freestanding outdoor
- Series: Logic
- Colour of the product: Stainless steel
Features

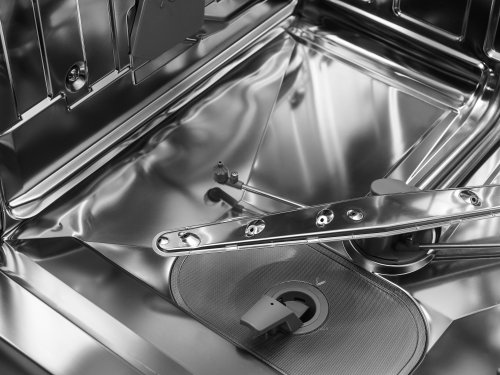

SCS - Super Cleaning System™
Rinse the dishes. Clean the interior, including the filter. Choose the best program. How many steps is that? One – and we call it the Super Cleaning System – or our best invention.

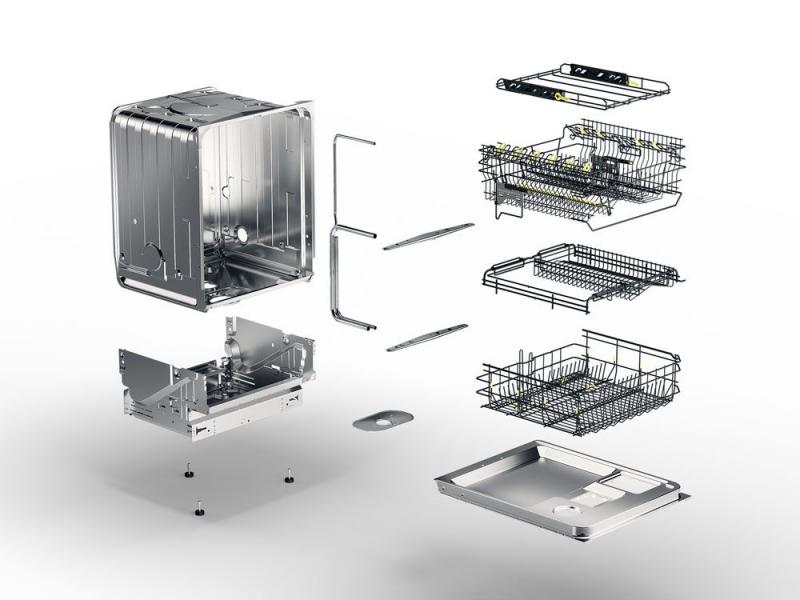

8 Steel™
8 Steel™ - more steel less plastic No other material lasts as long as steel. And no other dishwashers have as many details made from steel instead of plastic as ASKO dishwashers. In fact, eight of the most important components in our dishwashers are made of high-quality steel rather than plastic: the container, loading racks, spray pipe, spray arms, strainers, outer base, feet, and inner door. By using more steel and less plastic, we make our machines last longer.
Aqua Safe™ system
Aqua Safe™, is an advanced water safety system encompassing both a sturdy construction like PEX hose and seam-welded stainless container as well as smart systems as anti-block drain pump, Aqua Detect sensor and stand-by water protection. Few sealing points outside the container Seem-welded container in stainless steel Waterproof external base Exterior Float Aqua Detect™ Sensor Stand by water protection PEX inlet hose Maximum time for water intake Light and sound alarm Anti-block drain pump Safety Inlet Valve
Flexiracks™
ASKO Flexiracks™ from sturdy, nylon coated steel and are easily adjustable in different heights depending on which type of load you have.

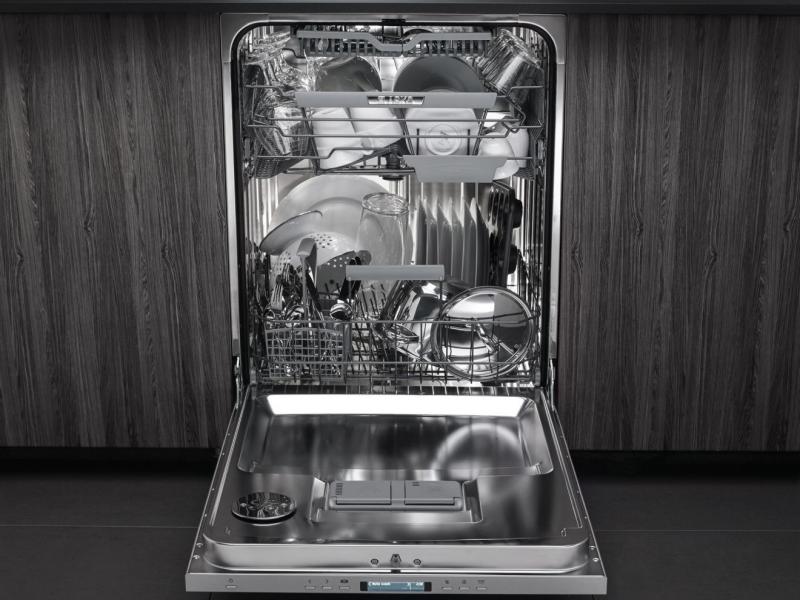

XXL dishwashers
Our XXL dishwashers have an loading height of 23". Combined with the smart four level rack system the load is 40% more, with countless possibilities to make it all fit in.
Self cleaning
ASKO’s dishwashers have a Self-cleaning program to ensure that all vital parts are thoroughly cleaned. Use a recommended cleaning agent and the program on a regular basis for best result.

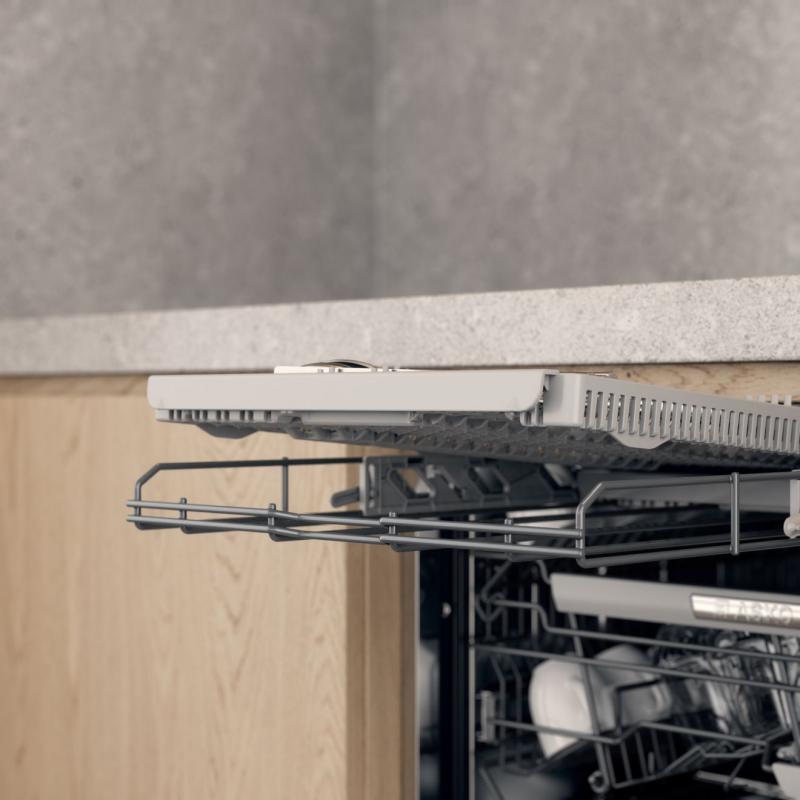

Top cutlery tray
The top tray for cutlery and kitchen utensils is easy to remove for easy unloading. With a width of 12-3/4" the centred tray leaves plenty of room for tall wine glasses in the upper rack on each side of the tray. And with the Instant Lift™ you have the freedom to adjust the upper rack to be 1-1/2" or 2-1/4".

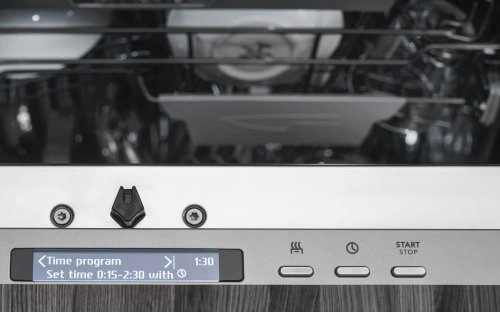

Time program
When you need clean plates in a hurry, just tell the machine how dirty the dishes are and how much time you have. The program then adjusts washing and rinsing to match your needs.

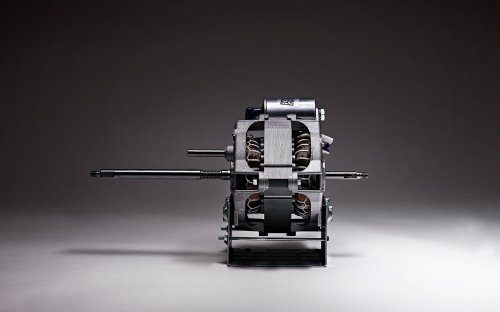

Brushless motor
A brushless motor is not only quieter and more reliable. It also consumes less energy. You want your dishwasher to work forever. So do we.
Speed mode
When you need to get things cleaned in a hurry, the Speed mode is useful. It saves up to 50% of the normal time, by using more water and increased heating.
Night mode
Night mode reduces the noise by 2 dB thanks to lower pressure in the spray arm. Perfect at night or in a house with an open plan living area.
Rinse & hold
The Rinse and hold program allows for you to avoid dried leftovers while you wait for the dishwasher to get fully loaded. Saves time and energy over time.
Aqua Level™Sensor
The Aqua Level™ Sensor ensures the exact amount of water. For example, if a plastic bowl turns over and is filled with water, the sensor automatically adds extra water to the process for a premium cleaning result.
Aqua Detect™ Sensor
The Aqua Detect™Sensor monitors the inlet valves and the water level while the machine operates. For safety reasons, the drain pump’s capacity is five times the inlet valve’s.

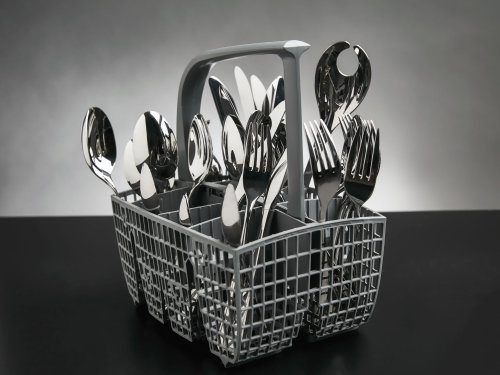

Power Zone Cutlery™
Power Zone Cutlery™ is a special nozzle spray zone for the cutlery basket that will make your cutlery dazzling clean. And, there is a similar nozzle for the knife basket.
Kid Safe™
To stop small fingers from starting the dishwasher the Kid Safe™ makes the control panel easy to lock. This also prevents altering any settings by mistake.
Instant Lift™
Our InstantLift™ height adjustment system, allows for freeing up between 1-1/2" or 2-1/4" in the upper rack,. A simple and flexible way to make room for it all.
7 Spray™
ASKO’s spray system consists of up to 7 effective spray zones to ensure a totally clean load. In the lower rack there are two power zones to take care of the dirtiest parts.

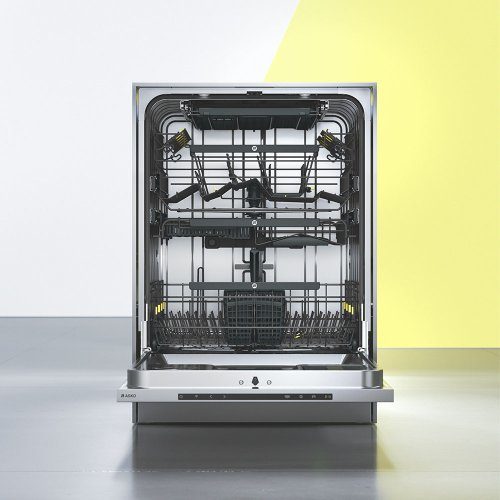

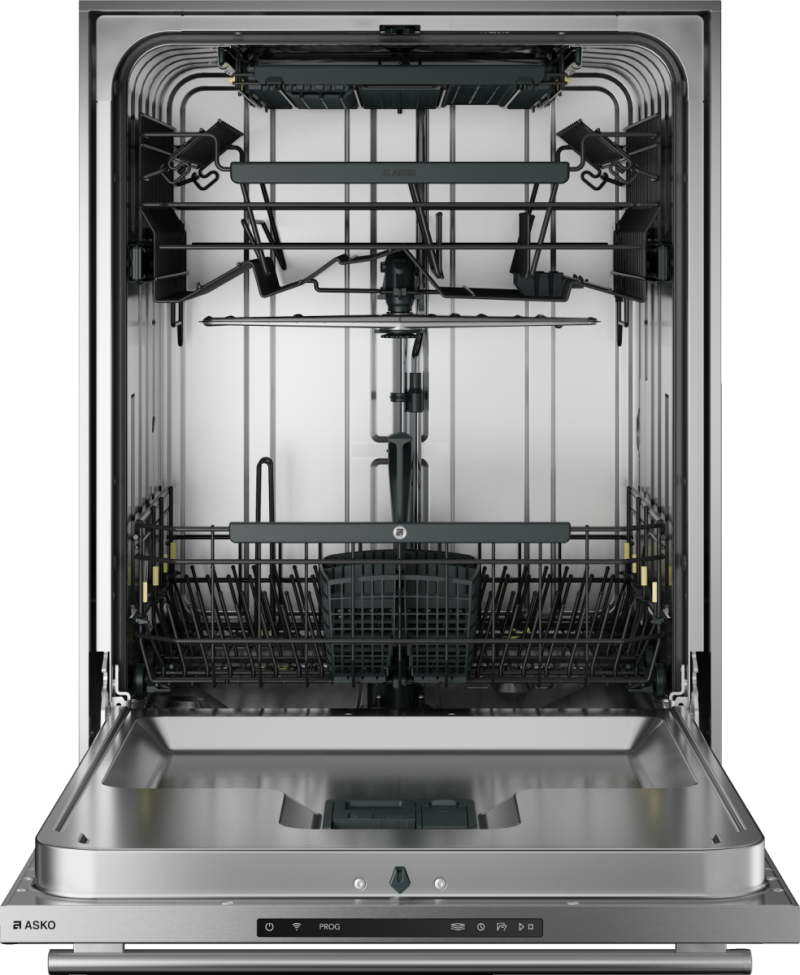

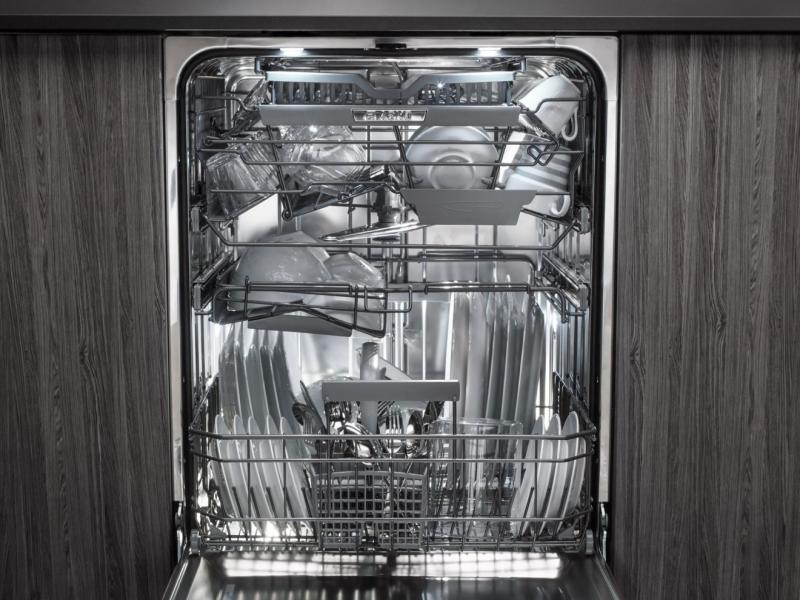

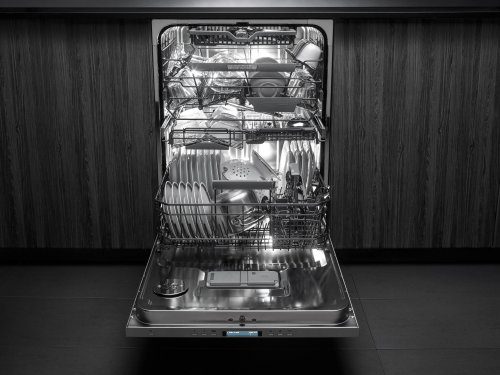

3 Level rack
ASKO’s three level rack system allows you to optimize the load. Remove, adjust, fold and move the racks, pin rows and cutlery rack to meet your every need.

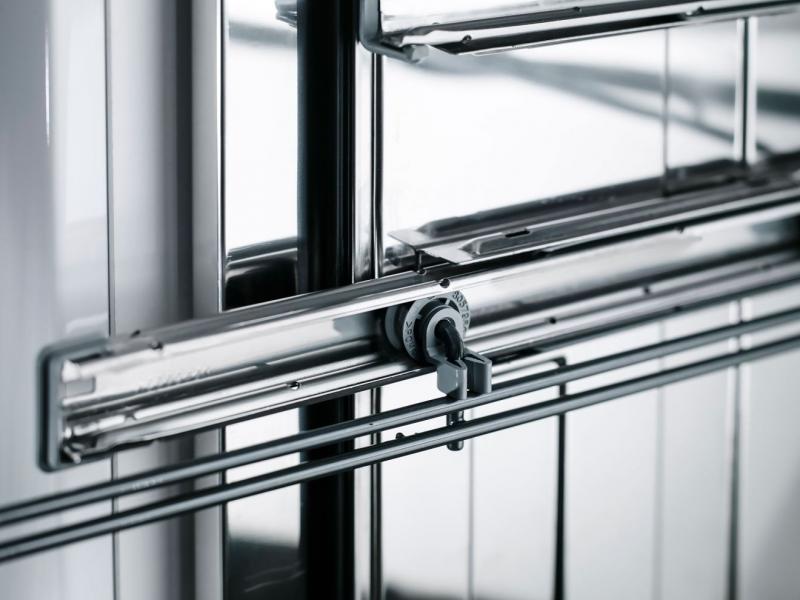

Telescopic rails
ASKO uses telescopic guide rails with ball bearings to make the racks glide smoothly and quietly. For easy loading and unloading, you can also take out the whole rack.

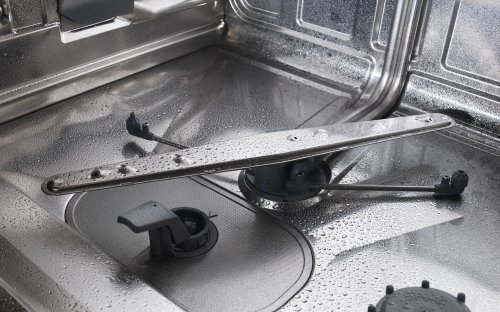

3 Spray arms
The 3 spray-arm technique reaches every corner and with up to 10 highly effective spray zones, no dirt can escape. Not even your lasagne baking dish.
Condensation dry
ASKO dishwashers are some of the most advanced in the world. They’re packed with innovative features that make light work of all types of loads. Like our pre-rinse that saves you having to clean dishes before loading. Also, our Turbo Drying system that rapidly extracts condensation after the final wash so your dishes dry much faster. All these handy features help to make ASKO dishwashers a favourite around the World.

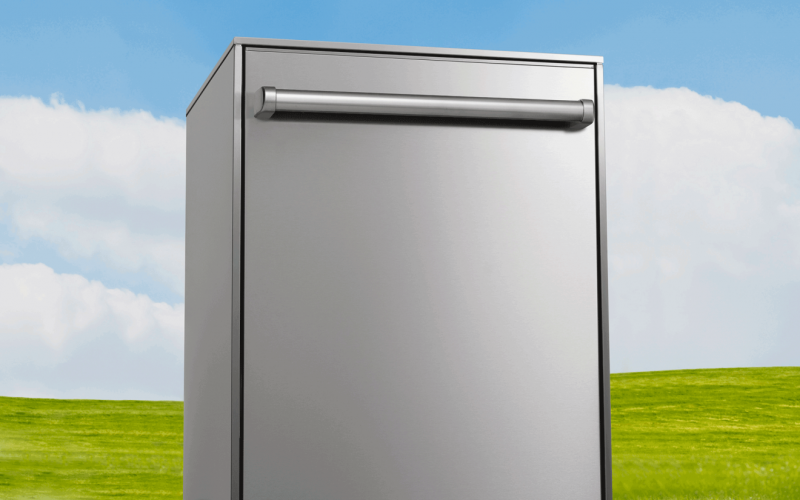

Outdoor model
The durable outdoor version is made of stainless steel in all vital parts to protect it from the elements. Perfect for small summer houses or when you want to upgrade your outdoor kitchen.
Touch Proof™
The ultra-thin, transparent TouchProof™ coating protects your dishwasher stains and grease Easy to clean, scratch resistant it will keep your dishwasher looking brand new year after year.
16 - Loading capacity
The world’s biggest load capacity. The latest addition to our rack system is a flexible top cutlery tray with its own spray arm and space for sixteen sets of cutlery, small bowls, or other utensils that can be difficult to load. The width of the top cutlery tray has been optimised to make room for tall glasses in the upper rack and, if more space is needed simply take the top cutlery tray out.
15-3/4" plates in lower rack
Our XXL dishwashers have room for a 40 cm big plate in the lower rack when the middle rack is removed and the upper rack in the upmost position.
Pop Out Door
When a program is completed, the Door Pop-Out function opens the dishwasher door automatically to remove the steam inside.

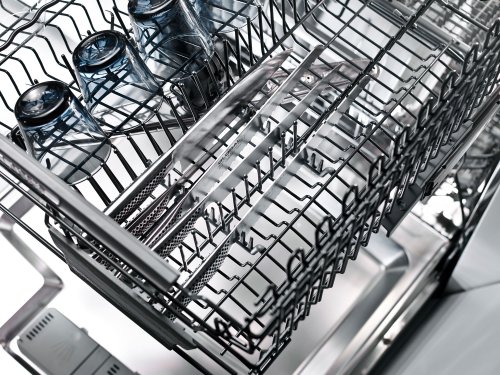

Knife holders
Knives are sensitive things, so too are fingers. That is why we have done everything possible to protect both as best we can. Our knife holder is extra deep so that the blades remain steady throughout the wash cycle. There are knife holders on three levels: in the middle basket, in the upper basket and in the top basket. We guarantee a clean cut.

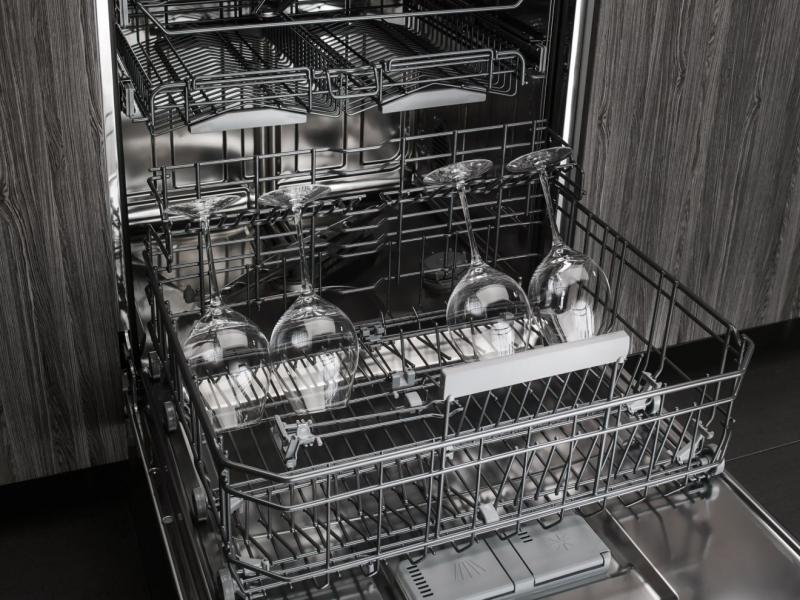

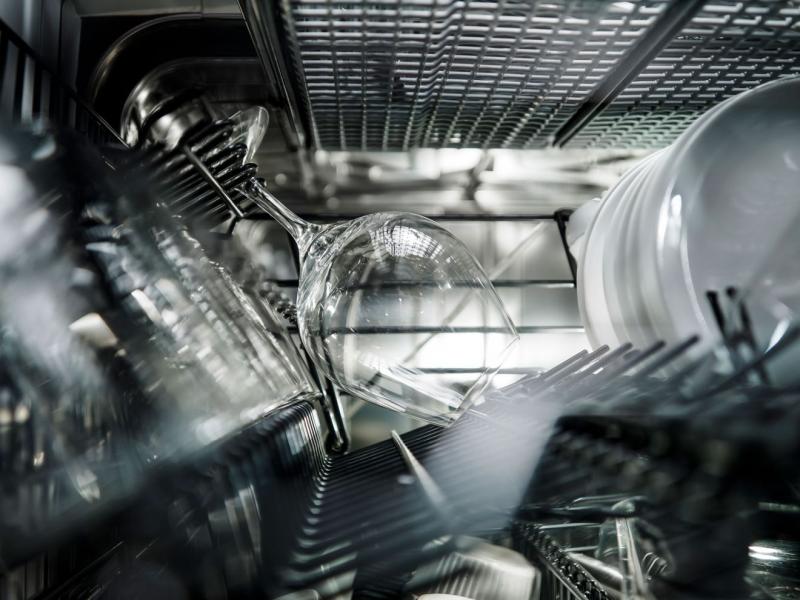

Multi position glass rack
The Multi position glass rack is a very practical rack that can be mounted in three different positions – all depending on your needs.
Focus points
Focus points - a hint of nature Opening the door of our new dishwasher can open your eyes to a few things. The high-grade steel might catch your attention at first. Then it may be one of the machine’s many clever features. These are highlighted with a color that mimics the ways in which nature brings focus to things. Closing the door puts the machine back in its place – where it doesn’t compete for space or attention – instead, it makes the room.
20 years
Today, sustainability and responsibility go hand in hand. So when we design our products, it is our responsibility to not only make products that last, but which also make things better – for our customers and for the planet. Designed to make a difference. And built to be enjoyed for the next 20 years.
Technical data | |
---|---|
Estimated yearly energy consumption | 220 kWh |
Duration of standard programme | 125 min |
Reference programme | 1 |
Noise level (max) | 48 dB(A) |
Adapter for water connection | No |
Max. temperature of inflow water | 60 °C |
Water connection | Hot&cold water |
Energy consumption - normal program | 1 kWh |
Estimated annual water consumption | 2451 l |
Water consumption | 11.4 l |
Power consumption in standby mode | 0.5 W |
Plug type | USA |
Connected load | 1300 W |
Voltage (V) | 120 V |
Number of phases | 1 |
Fuse | 15 A |
Frequency | 60 Hz |
Required inlet water pressure MPa | 0,03-1 |
Net weight | 72 kg |
Safety and maintenance | |
Rinse-aid Indicator | Notification in display |
Child safety | Kid Safe™ - Lockable controls |
Aqua Safe™ system | Yes |
Aqua Safe™ | Sealing points outside container Extra durable stainless steel container Waterproof bottom plate Detection of water leakage on the bottom plate Aqua Detect™ - Instant recognition of any leakage in the motor compartment Aqua Level™ Sensor - Ensures an optimized water level Stand-by water protection - Leakage detection when machine is off Extra durable PEX inlet hose Maximum time for water intake Light and sound alarm Anti Block™ - Self cleaning drain pump |
Design and integration | |
Adjustable kick plate | No |
Sliding door | No |
Possible to install elevated | No |
Height setting | 25 mm |

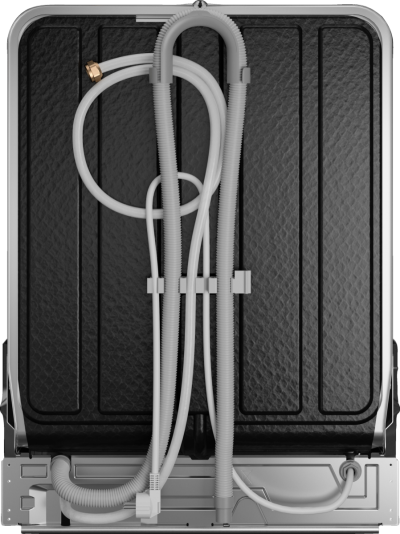

Installation | Multi fit outlet hose Fixed high loop outlet hose Tip guard |
Rear leg is adjustable from the front | No |
From the front adjustable door spring | No |
Functions, programs and modes | |
Delayed start | Possible to delay up to 24 hours |
Options and modes | Time set Heat Boost Mode Enable/disable automatic door opening Speed mode - The program time is shortened. More energy is used. Night mode - Lower noise level. The program time is extended. Super Rinse™ - Two extra rinses |
Main wash temperature (°C) | 55/60/65/70 |
Programs | Rinse and hold program Intensive program Sanitize Standard Time program Self cleaning Light wash |
Interaction and control | |
Language settings | Norwegian German Russian Finnish Swedish Portuguese Lithuanian English Latvian Croatian Italian French Chinese traditional Spanish Estonian Czech Ukrainian Japanese Slovak Slovenian Chinese simpified Polish Danish Dutch |
End wash indicator | Displayed with sound and light |
Remaining time indicator | Yes |
Status Light™ - Visual indication of dishwashing progress | No |
Type of display | LCD display |
Possible to control via Wi-Fi | No |
Use and flexibility | |
Lower basket | Foldable/divisible rear tine row Cutlery basket Small distance between the basket threads - makes loading easy and prevents small items to fall through. Handle with plastic logotype |
Automatic dosing system | No |
Interior light | No |
Lower basket type | Premium - Basket wiring in steel, fixed tine rows and removable cutlery basket |
Middle basket | Without middle basket |
Upper basket | Small distance between the basket threads - makes loading easy and prevents small items to fall through Handle with plastic logotype Foldable wine shelves to left Standard knife stand Fixed glass support Foldable wine shelves to right Fixed tine rows |
Upper basket height adjustable | No |
Upper basket type | Premium - Nylon coated steel baskets, fixed tine rows and foldable wine shelves for maximum longevity |
Top tray | Easy height adjustment Handle Removable |
Number of racks | 3 |
Number of place settings | 16 pcs |
Construction and performance | |
Exterior handle | T-Bar |
Cleaning systems | Cutlery Spray™ - Extra dishwashing power for the cutlery basket No need to rinse the dishes thanks to Super Cleaning System™ Aqua Level™ Sensor Stainless steel spray arms |
Number of spray zones | 7 |
Number of spray arms | 3 pcs |
Automatic water-softener for better washing performance | No |
No need to rinse the dishes thanks to Super Cleaning System™ | Yes |
8 Steel™ - Vital parts of the dishwasher made in stainless steel | Yes |
Dimensions | |
Width | 623 mm |
Height | 881 mm |
Depth | 633 mm |
Maximum product height | 906 mm |
Length of electrical cord | 1815 mm |
Depth with door open | 1310 mm |
Length inlet hose | 163 cm |
Length outlet hose | 107 cm |
LOGISTIC INFORMATION | |
Packaging width | 670 mm |
Packaging height | 1010 mm |
Packaging depth | 750 mm |
Gross weight | 81 kg |
Product code | 740110 |
EAN code | 3838782688058 |
