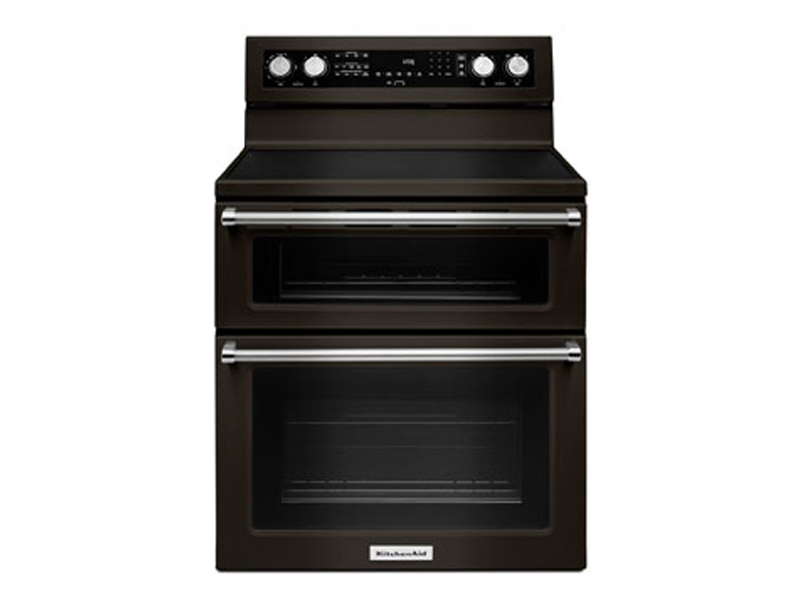

30" KitchenAid 6.7 Cu. Ft. 5 Burner Electric Double Oven Convection Range - YKFED500EBS
With 12 month financing
We now offer financing powered by
You may also like
External Dimensions
Dimensions shown are for planning purposes only. For complete information, see Installation Instructions packed with product.
Height : 47 3/8
Width : 29 15/16
Key Features
Even-Heat True Convection : Produces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature.
6.7 Cu. Ft. Total Capacity : Provides an extra-large combined cooking capacity for preparing multiple dishes at once and gives you the flexibility of separate temperature zones.
Professionally-Inspired Design : Combines a bold blend of professionally-inspired styling with sleek touches for the home. This double oven range features Satin Textured Handles and the KitchenAid Badge, a symbol of uncompromised quality.
5 Cooking Elements Including a Warm Zone : Provides five independent cooking surfaces that allow you to do more on your range. It features a triple cooking zone of 6, 9 and 12 inches, one 10 inch zone and two 6 inch cooking zones, plus a dedicated warming zone.
EasyConvect Conversion System : Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
SatinGlide Rack : Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
Hidden Bake : Covers up the baking element, making it easier to wipe away spills.
Triple-Ring Element : With three element sizes at one location, you get the versatility to match cooking surface to cookware size.
10" Even-Heat Ultra Element : Delivers consistent heat across the cooktop, including fast boils, precise simmering and exceptional melting.
Stainless Steel Cooktop Trim : Provides a seamless transition to other surfaces and enhances the look of edges around stainless steel cooktops.
Oven Features | |
---|---|
Convection Cooking Technology | Bake, Broil, Roast |
Convection Cooking Technology | Fan |
Convection Element Power (watts) | 1600 |
Broiler Location | Top of Oven |
Broiler Element Power | 3600W Both |
Hidden Bake Element | Yes |
Bake Element Power | 2000W Both |
Self-Cleaning | Self-Cleaning |
Light Type | Incandescent |
Power On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Heating Element On Indicator Light | Yes |
Automatic Convection Conversion Temperature Adjust | Yes |
Number of Oven Lights | 1 |
Convection Cooking Technology | Thermal Upper-Convection Lower |
Number of Oven Racks | 1 Upper-2 Lower |
Number of Rack Guides | 2 Upper-5 Lower |
Oven Rack Type | 1 Gliding Roll-Out, 2 Heavy Duty |
Cooktop Features | |
Right Rear Element-Burner Type | Single |
Right Rear Element-Burner Size | 6" |
Right Rear Element-Burner Power | 1200W |
Right Front Element-Burner Type | Radiant Hyper |
Right Front Element-Burner Size | 10" |
Right Front Element-Burner Power | 3200W |
Left Rear Element-Burner Type | Single |
Left Rear Element-Burner Size | 6" |
Left Rear Element-Burner Power | 700W |
Left Front Element-Burner Type | Triple |
Left Front Element-Burner Size | 12"/9"/6" |
Left Front Element-Burner Power | 2700W/1950W/1050W |
Center Rear Element-Burner Type | Warming |
Center Rear Element-Burner Size | 6" |
Center Rear Element-Burner Power | 100W |
Number of Burner | 5 |
Cooktop Surface Material | Ceramic Glass |
Cooktop Surface Color | Black |
Cooktop Element Style | Radiant |
Configuration and Overview | |
Star K Compliant | Sabbath Mode |
Size | 30 |
Capacity | 6.70 |
Range Type | Freestanding Double Oven |
Fuel Type | Electric |
CONTROLS | |
Drawer Type | None |
Handle Material | Metal |
Selections | Control Lock, Cook Time Indicator, Delay Start, Easy Convect Conversion, Keep Warm Setting, Proofing, Sabbath Mode, Slow Cook |
UL | UL |
Star K Compliant | Sabbath Mode |
