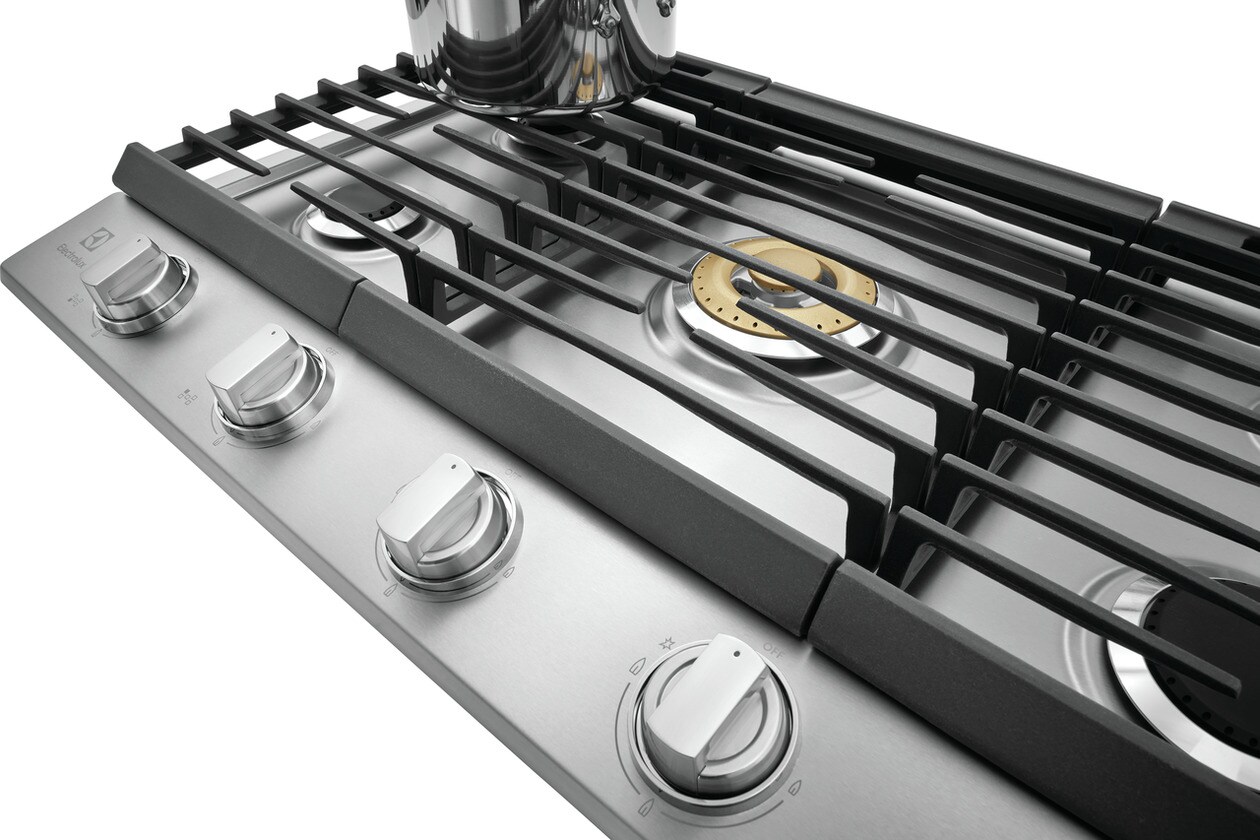

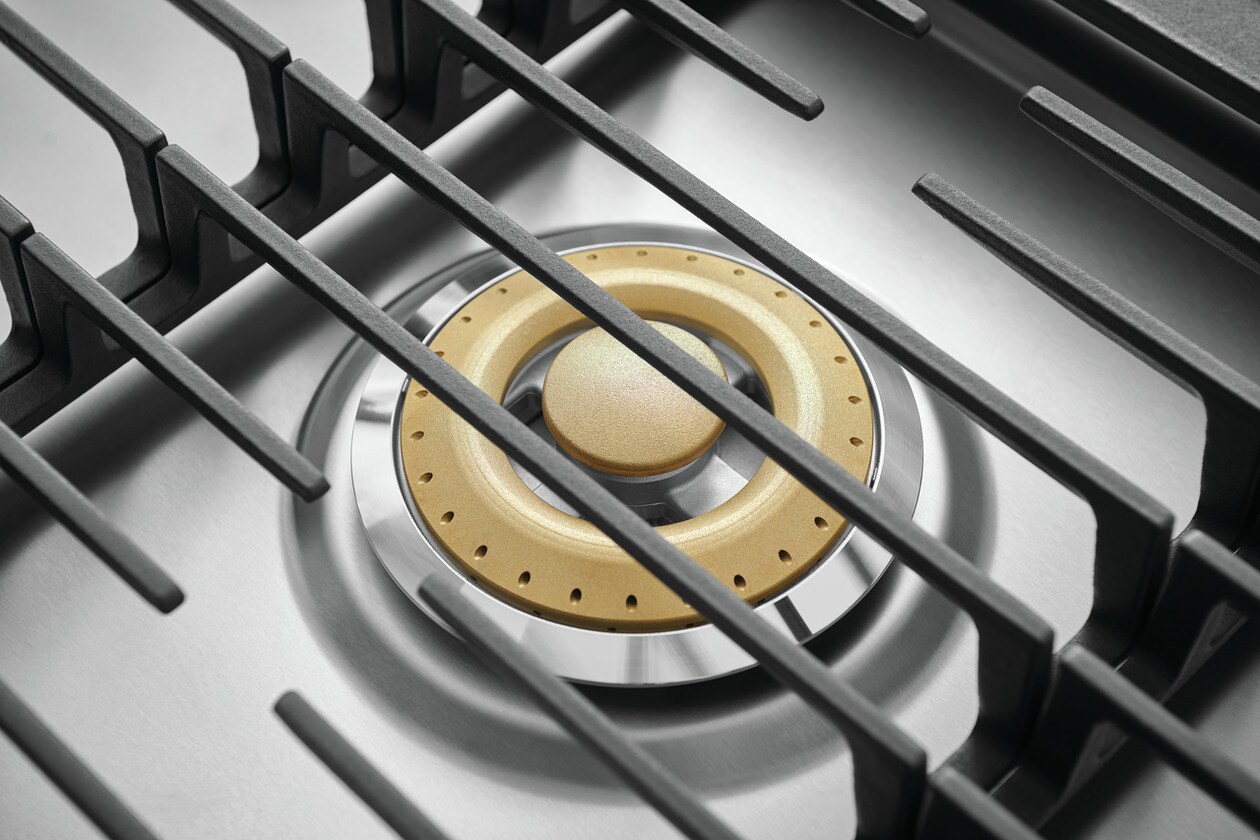

Flexible Brass Power Burner
Achieve accurate and efficient temperature control - whether you need a light simmer or a powerful boil - with a flexible brass power burner that evenly covers the bottom of the pan

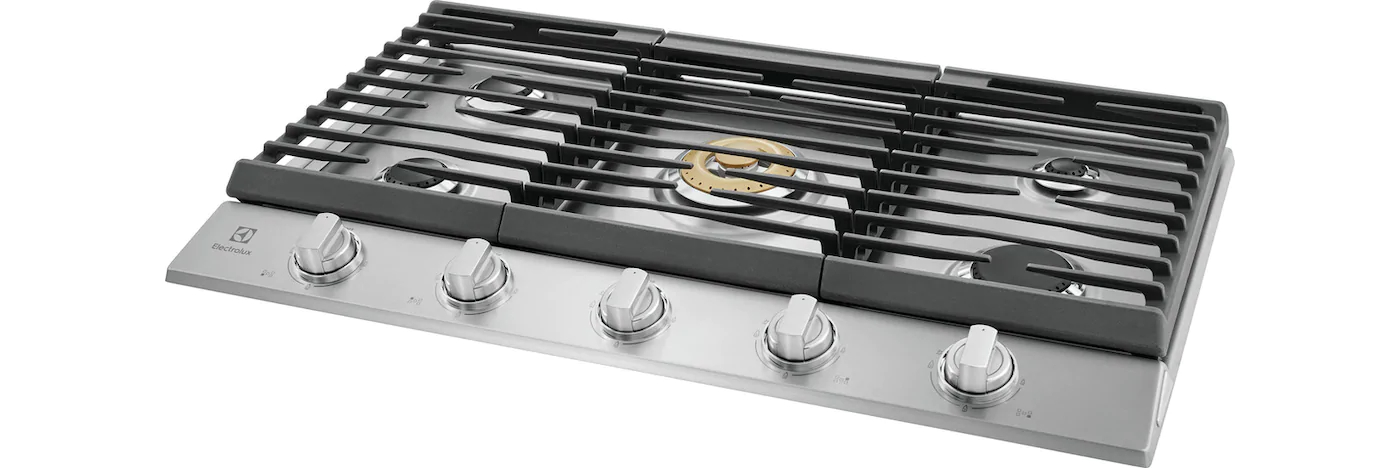

Continuous Grates
Easily slide even your heaviest cookware from burner to burner with our continuous grates that also lend to the sleek look of the cooktop

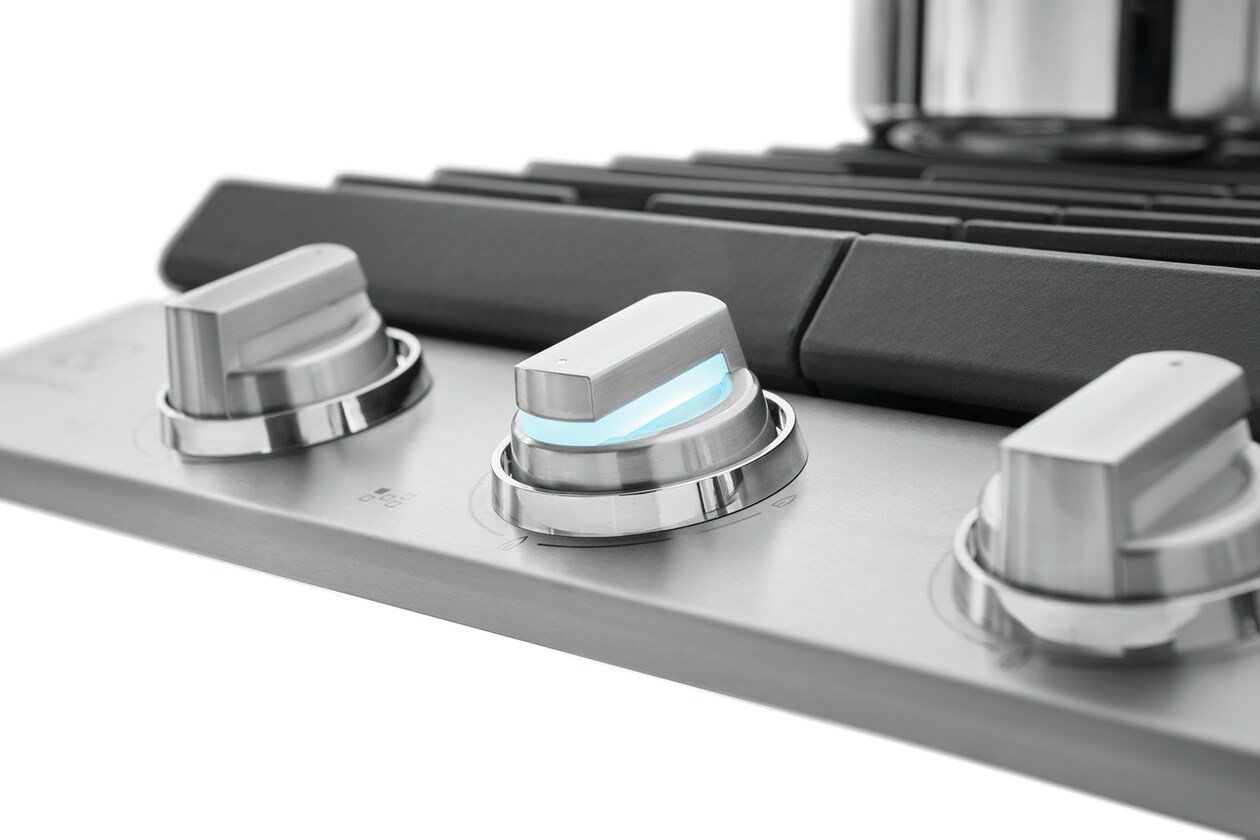

LED Backlit Knobs
Get a premium look with sturdy, LED backlit knobs that turn on once the burner is lit

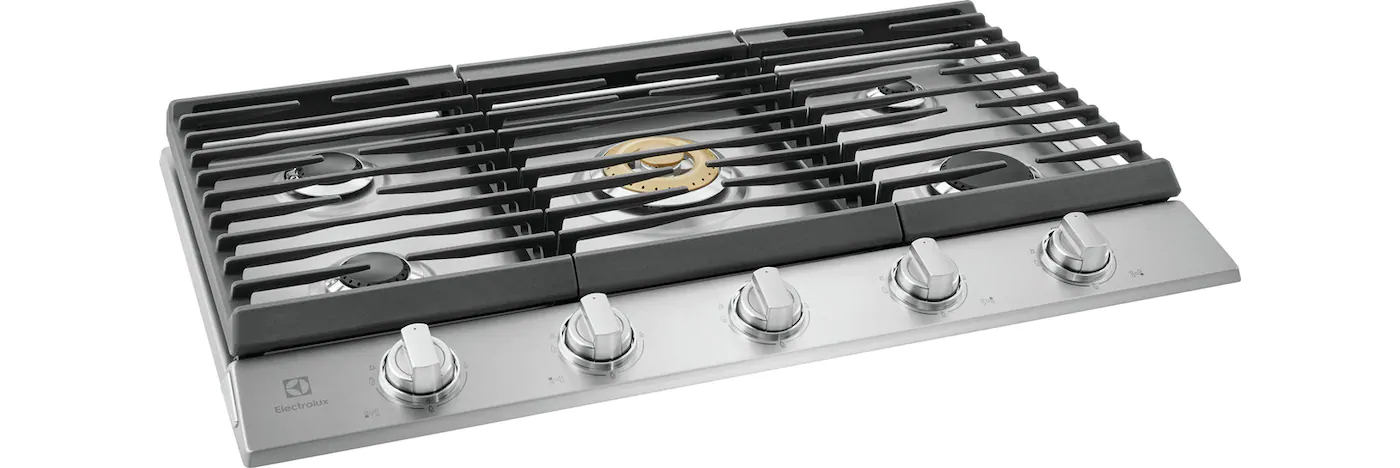

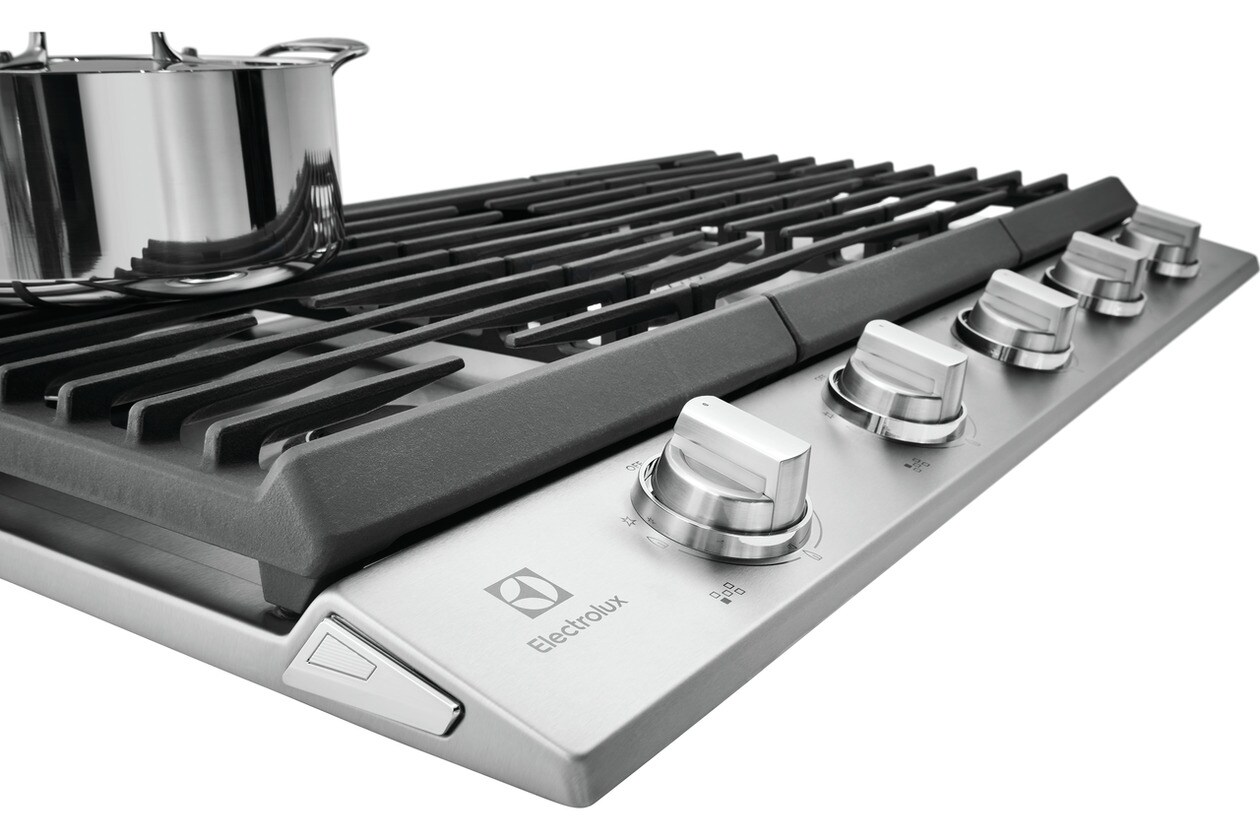

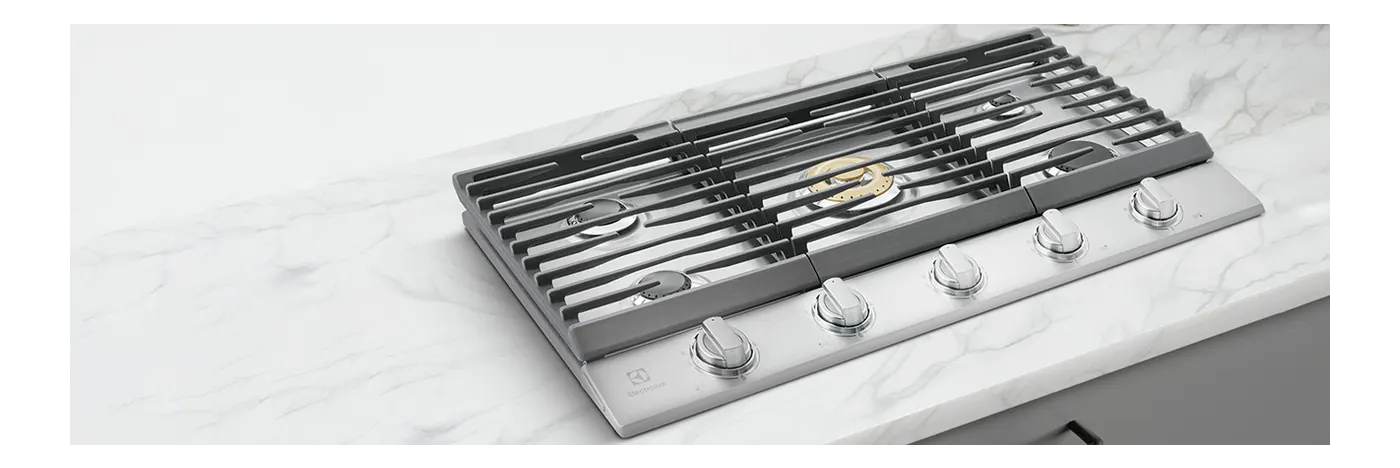

Sleek Design
Full-framed linear grates, edge-to-edge front controls with sturdy LED backlit knobs and a premium brass burner accent lend to the sleek design that make this cooktop a focal point of your kitchen
Included Griddle
Create specialty foods like crepes and paninis right on your cooktop with an included griddle that allows for multiple cooking techniques
Melt Cap Accessory
Easily melt chocolate and other delicate ingredients with the gentle heat provided by the melt cap accessory

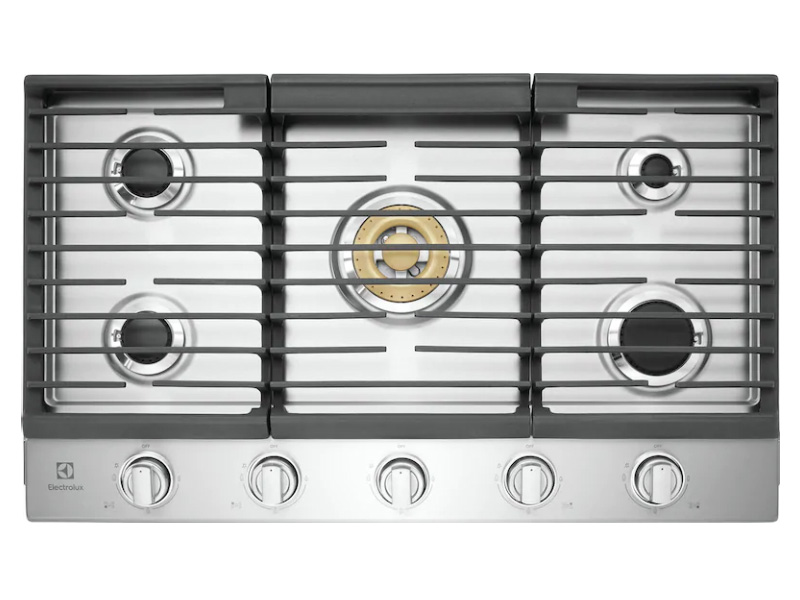

Five Burners
Cook for a crowd with ease with five burners that allow you to cook multiple dishes at once

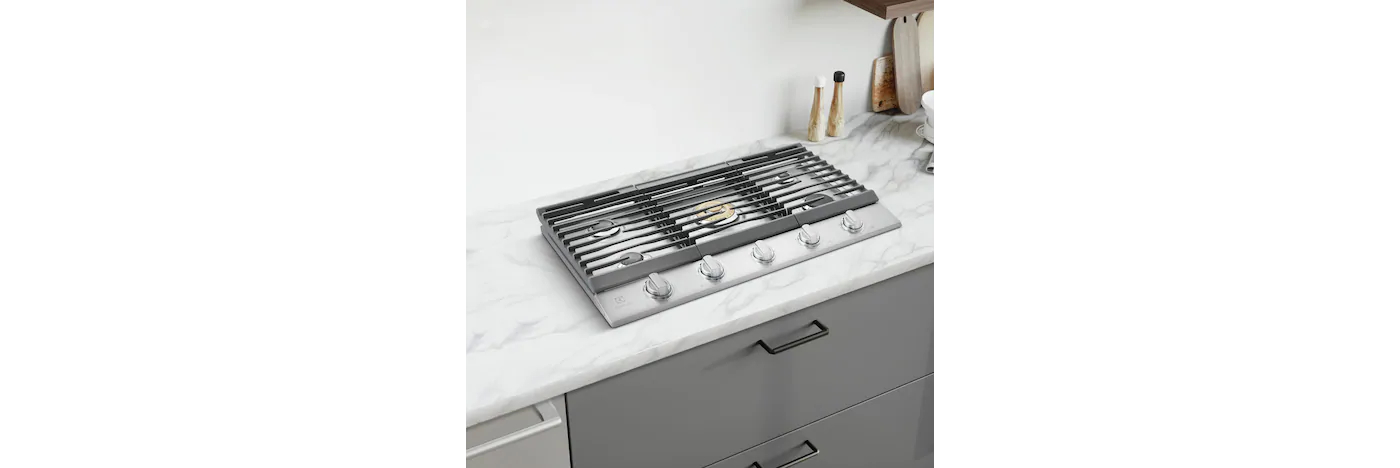

Perfect Fit Promise
We guarantee that our cooktop will fit your existing space or we'll reimburse the cost of your countertop modifications 1
ADA Compliant
Complies with the ADA requirements as specified in the Americans with Disabilities Act 2
| Dimensions and Volume | |
|---|---|
| Height | 2 219/500" |
| Width | 36" |
| Depth | 21" |
| Cutout Height | 7 1/2" |
| Maximum Cutout Depth | 20" |
| Maximum Cutout Width | 35 5/8" |
| Minimum Cutout Depth | 19" |
| Minimum Cutout Width | 33 7/8" |
| Installation Considerations | |
| Gas Supply Connection Location | Right Center |
| LP Conversion Kit Included | Yes |
| COOKTOP | |
| Cooking Surface Type | Gas |
| Grate Material | Cast Iron |
| Grate Quantity | 3 |
| Grate Style | Continuous |
| Sealed Burners | Yes |
| Right Front Element Burner | 12,000 BTU |
| Right Rear Element Burner | 5,000 BTU |
| Left Front Element Burner | 9,500 BTU |
| Left Rear Element Burner | 9,500 BTU |
| Center Element Burner | 20,000 BTU |
| General Specifications | |
| Product Weight | 44.65 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| ELECTRICAL SPECIFICATIONS | |
| Voltage Rating | 120 V |
| Certifications and Approvals | |
| CSA Listed | Yes |
| RoHS | Yes |
| ADA Compliant | Yes |
