Features

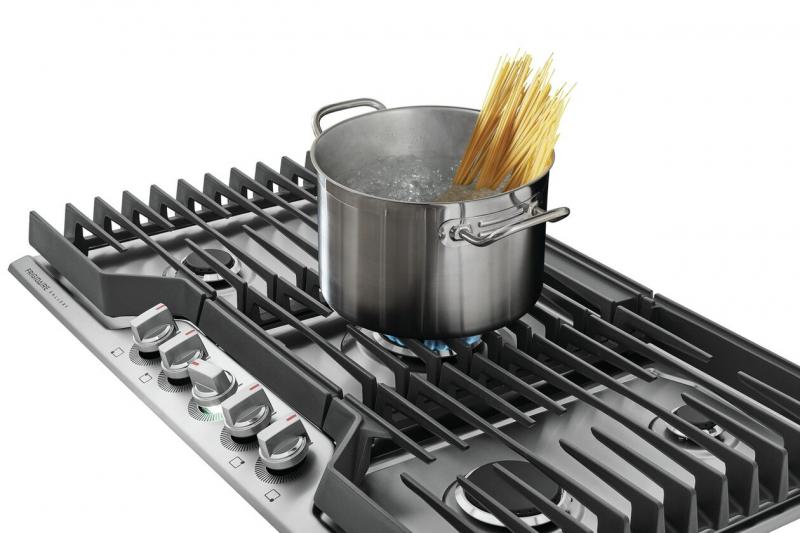

Get to mealtime faster with the Quick Boil Burner
Experience faster boil times and more powerful cooking with the 18,000 BTU burner. Backlit LED knobs light up when the cooktop is in use.

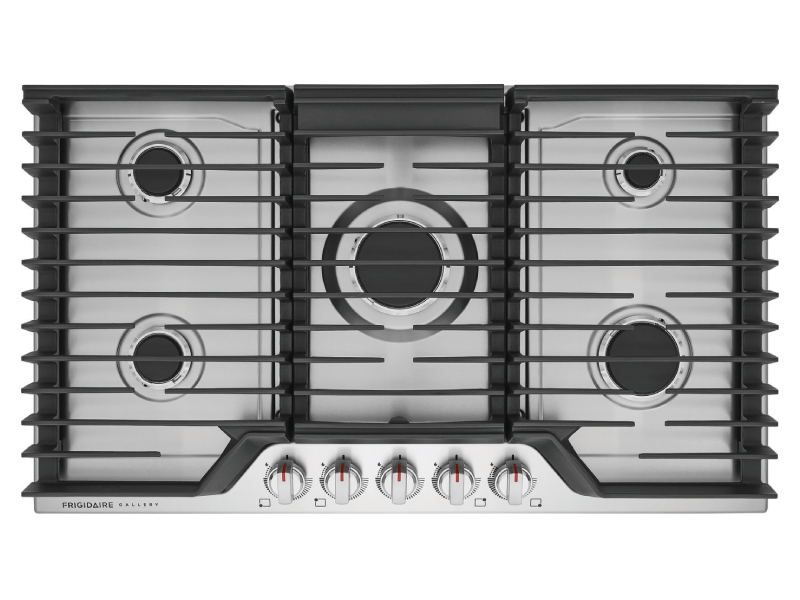

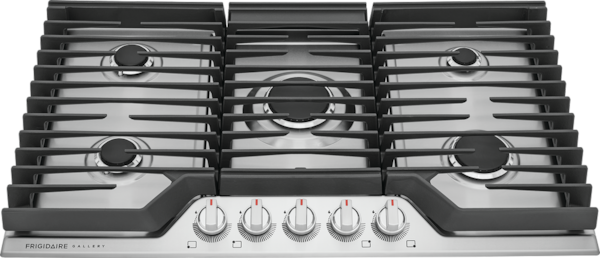

Flexible Five Burner Cooktop
This cooktop features five burners designed to fit all of your cooking needs, including a 5,000 BTU simmer burner perfect for delicate foods and our powerful 18,000 BTU Quick Boil Burner that gets meals on the table, faster.

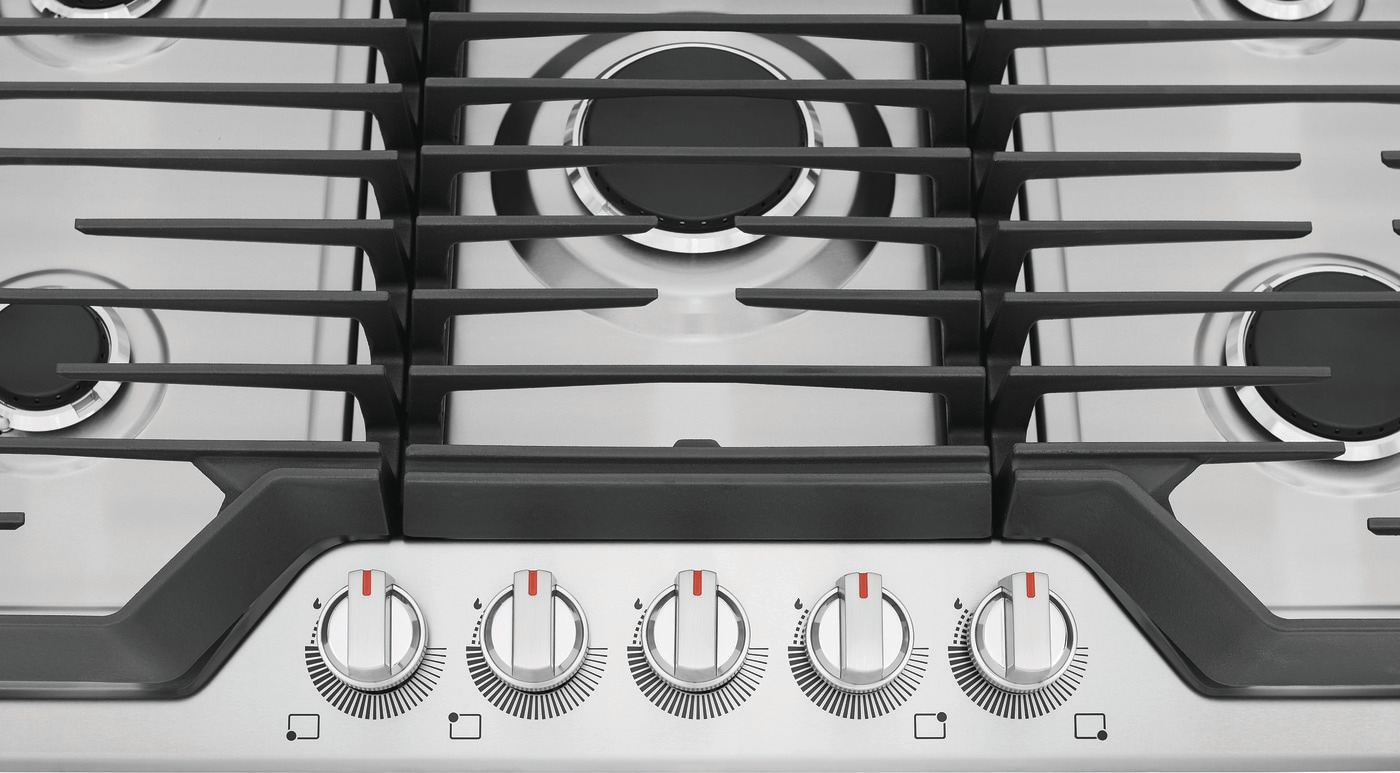

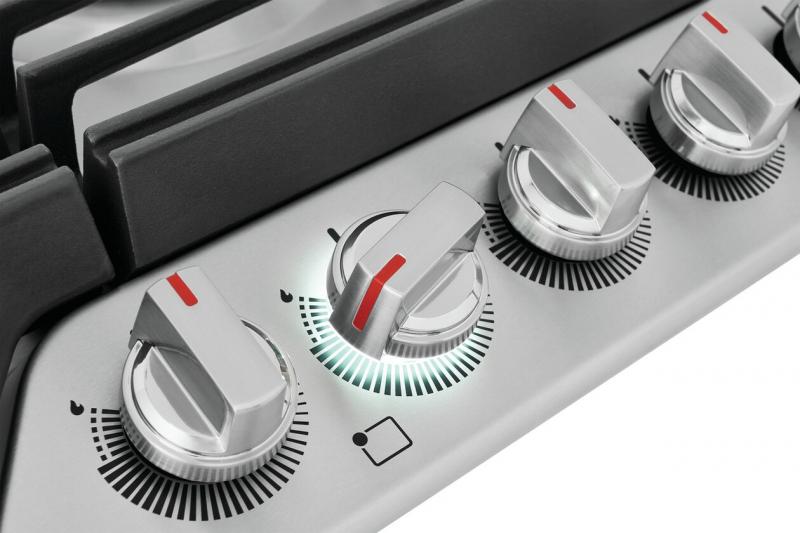

Bright, backlit LED Knobs
Backlit LED knobs light up when the cooktop is in use.

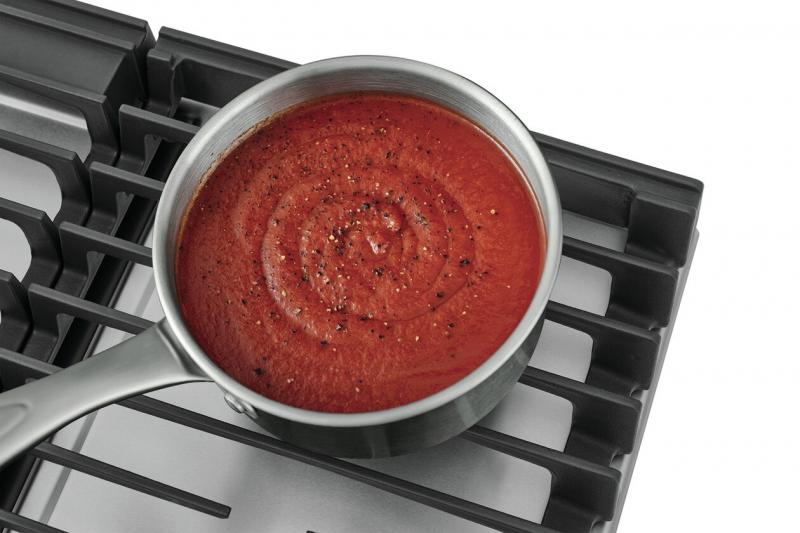

Low Simmer Burner
Low simmer burner delivers low, gentle heat allowing you to prepare delicate foods or sauces without burning or scorching the bottom.

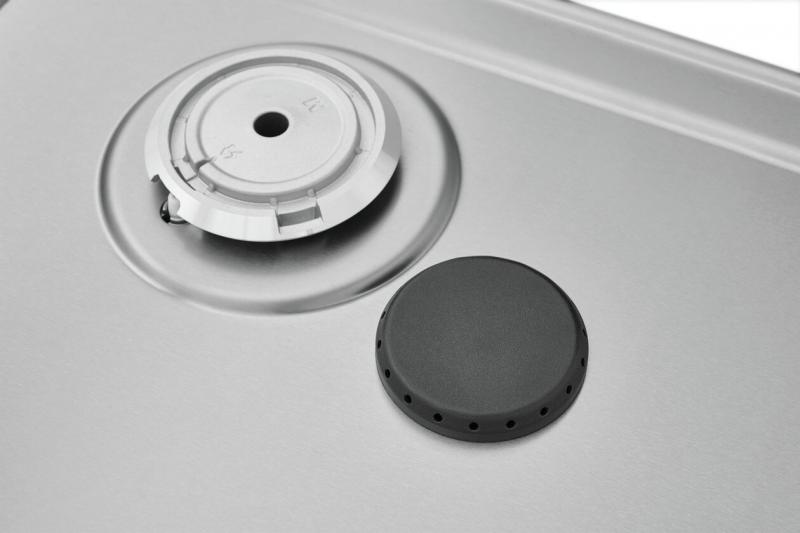

Dishwasher Safe Burners Caps
Cleaning your cooktop is easier with removable, dishwasher safe burner caps.

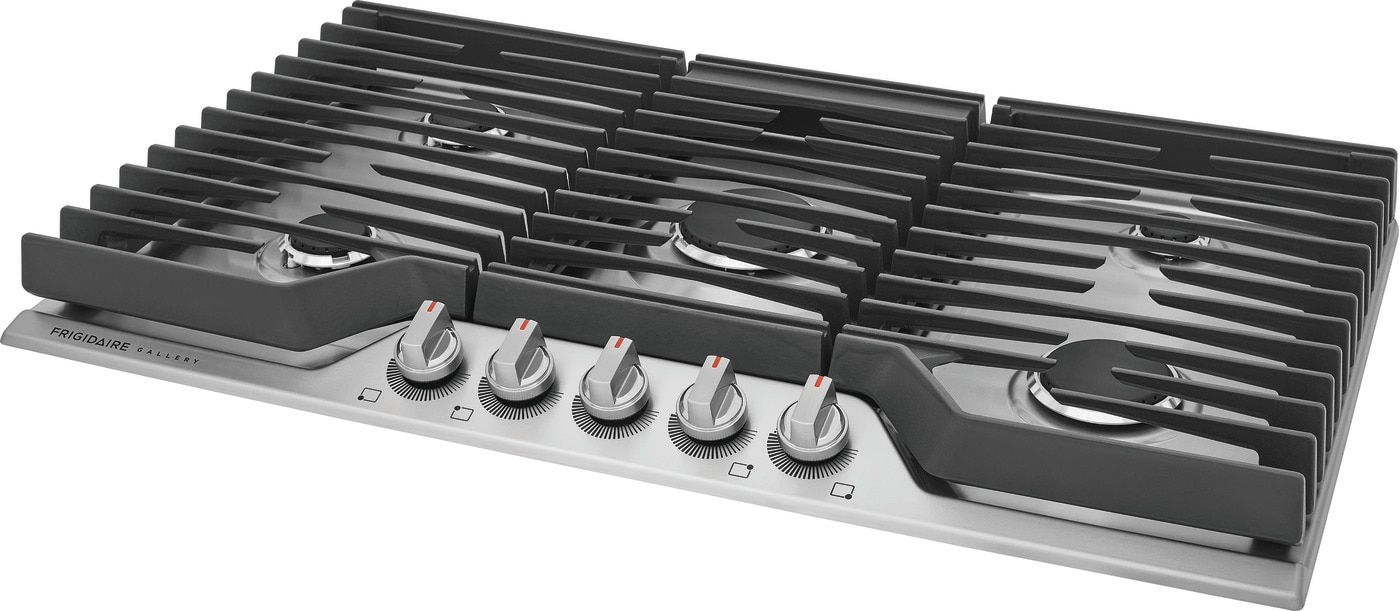

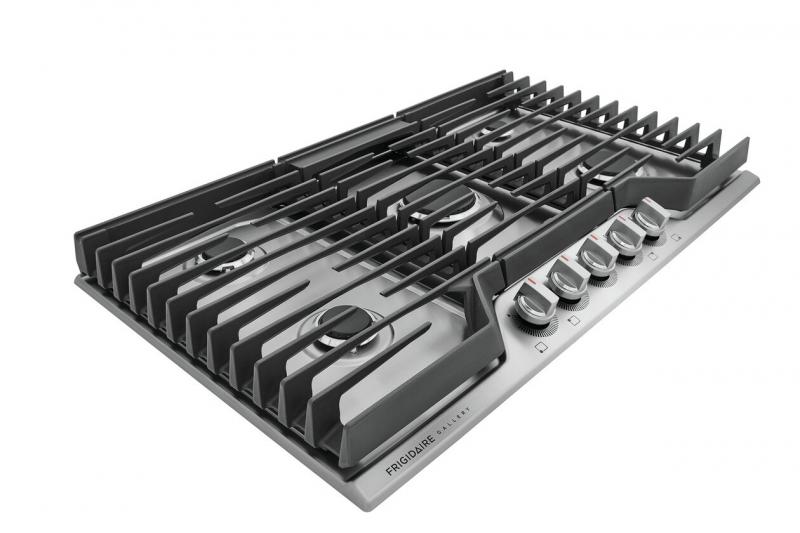

Continuous Edge-to-Edge Grates
Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.
Keep your cooktop looking beautiful with the Spill Safe Cooktop
Clean-up is less of a hassle with the recessed cooktop that contains spills and common cooking messes.
Peace of Mind with the Frigidaire Fit Promise
We promise that your new 36" Frigidaire Gallery gas cooktop will fit your existing cut-out, or we will reimburse you up to one hundred dollars for professionally modifying the countertop. 1
Approved over Frigidaire Electric Wall Ovens
Cooktops are approved for installation above any of our Frigidaire or Frigidaire Gallery Single Electric Wall Ovens.
| Certifications and Approvals | |
|---|---|
| UL Listed | Yes |
| CSA Listed | Yes |
| ADA Compliant | Yes |
| Exterior | |
| Backlit Knobs | Yes |
| COOKTOP | |
| Grate Style | Continuous |
| Grate Quantity | 3 |
| Grate Material | Cast Iron |
| Cooking Surface Type | Gas |
| Installation | |
| Power Supply Connection Location | Right Center |
| Power Cord Included | Yes |
| LP Conversion Kit Included | Yes |
| Installed Over a Wall Oven | Yes |
| Gas Supply Connection Location | Top Right |
| ELECTRICAL SPECIFICATIONS | |
| Voltage Rating | 120 V |
| Minimum Circuit Required | 5 Amps |
| Cooktop Performance | |
| Right Front Element Burner | 12,000 BTU |
| Center Front Element Burner | 18,000 BTU |
| Left Rear Element Burner | 9,500 BTU |
| Left Front Element Burner | 9,500 BTU |
| Right Rear Element Burner | 5,000 BTU |
| General Specifications | |
| Warranty - Parts | 1 Year |
| Warranty - Labor | 1 Year |
| Prop 65 Label | Yes |
| Product Weight | 51 lbs |
| Frigidaire Fit Promise | Yes |
| Display | |
| Control Location | Front |
| Dimensions and Volume | |
| Height: | 2 7/16" |
| Width: | 36" |
| Depth: | 21" |
| Cutout Height: | 7 1/2" |
| Minimum Cutout Width: | 33 7/8" |
| Minimum Cutout Depth: | 19" |
| Maximum Cutout Width: | 35 5/8" |
| Maximum Cutout Depth: | 20" |
