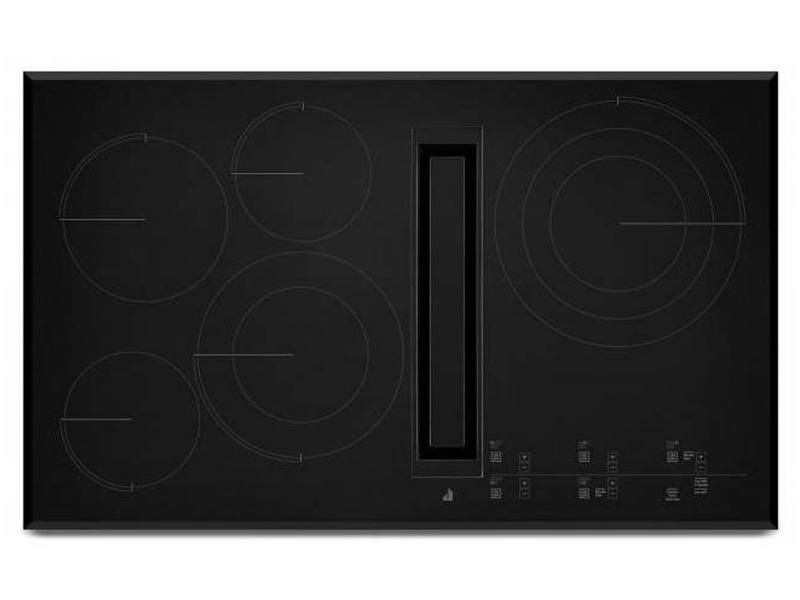

36" Jenn-Air Electric Radiant Downdraft Cooktop in Black - JED4536KB
36" Jenn-Air Electric Downdraft Cooktop - JED4536KS
36" Jenn-Air Electric Radiant Downdraft Cooktop in Black - JED4536KB
With 12 month financing
We now offer financing powered by
With 12 month financing
We now offer financing powered by
With 12 month financing
We now offer financing powered by
You may also like
Top 3 Features

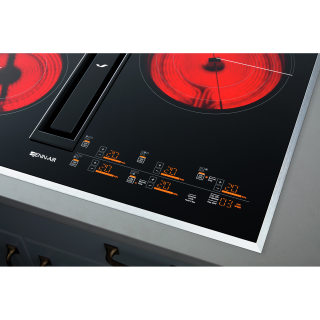

Emotive Controls
Striking and inviting controls with LED lighting unleash performance at your touch.

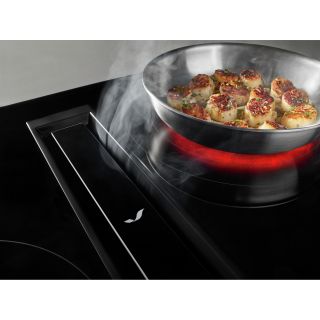

JX3™ Downdraft Ventilation System with 3 Speeds
Developed and refined by JennAir®, this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class blower system.
Oblivion Glass Surface
Sleek black glass with a beveled edge that seizes its surroundings. Lose yourself in the depths of infinite possibilities that dare you to explore your limits.
Additional Features
10”/6” Dual-Choice™ Element (3,000 Watt)
This two-tiered single element accommodates various-sized cookware in one location and can achieve an output of 3,000 watts when both elements are active.
12"/9"/6" Triple-Choice™ Element
This three-tiered element reaches a high of up to 4,500 watts at its highest setting and can reach a low of 1,050 watts allowing you to experience the ultimate versatility in power levels, accommodating various-sized cookware.
Two 6 Inch Elements
Heating elements sealed underneath a ceramic glass cooking surface that offers up to 1,200 to 1,300 watts of power.
8 Inch Element
A heating element sealed underneath a ceramic glass cooking surface that offers up to 1,800 watts of power.
Perimetric Extraction
Provides exceptional ventiliation performance built into an attractive design by capturing cooking vapors through a thin slot and speeding the air, all while maintaining quiet operation.
Radiant Elements
Waiting expectantly beneath the stillness of obsidian black glass, electric elements are coiled to deliver heat upon command.
297 CFM Motor Class Blower
A single centrifugal blower motor combines with a perimetric design, allowing this ventilation system to operate at just 297 CFM Motor Class.
Hot Surface Indicators
Light(s) positioned at the controls instantly show which element is still hot – even if the element has been turned off.
Badasses at the Ready
Our crew relentlessly engages with JennAir® appliances day in, day out. Initiated in rigorous product, process and culinary training, this team answers to you—from sales to installation to ownership.
Serviced by a Select Few
We narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.
Optional Duct-Free Ventilation Kit
Downdraft cooktops are manufactured to be used with ductwork, but this option enables conversion of the JX3™ downdraft cooktop to be used with a duct-free system. (Sold separately)
Duct-Free Filter
Filter included with the duct-free kit that captures smoke, grease and moisture, and allows air to travel through the filter without a loss of air efficiency. The filter also has a replacement indicator.
Cooktop Details | |
---|---|
Left Front Element-Burner Type | Hyper |
Left Front Element-Burner Power | 1300W |
Center Front Element-Burner Size | 10"/6" |
Center Front Element-Burner Power | 3000W/1400W |
Left Rear Element-Burner Size | 8" |
Center Rear Element-Burner Size | 6" |
Left Front Element-Burner Size | 6" |
Center Rear Element-Burner Power | 1200W |
Number of Cooking Element-Burners | 5 |
Cooktop Surface Color | Black |
Cooktop Element Style | Radiant |
Center Rear Element-Burner Type | Single |
Left Rear Element-Burner Power | 1800W |
Right Rear Element-Burner Power | 4500/3100/1550W |
Left Rear Element-Burner Type | Single |
Right Rear Element-Burner Size | 12"/9"/6" |
Right Rear Element-Burner Type | Triple |
Center Front Element-Burner Type | Dual |
CONTROLS | |
Control Type | Electronic Touch |
Control Location | Right Front |
Infinite Heat Controls | No |
Features | |
Power Outage Compatible | No |
Selection | Convertible to Duct Free Ventilation,JX3 Downdraft Ventilation System with 3-Speed Fan |
Power Boost | No |
LP Convertible | No |
Griddle | NA |
Installs Over Built-In Oven | No |
Heating Element On Indicator Light | Yes |
Downdraft Vent | Yes |
Automatic Pan Detection | No |
Digital Display | Yes |
Hot Surface Indicator Light | Yes |
Description | |
Size (in.) | 36 |
Fuel Type | Electric Radiant |
Cooktop Type | Downdraft |
Certifications | |
UL | Yes |
Energy Rating (kWh/year) | 258 |
ADA Compliant | Yes |
Prop 65 | Standard |
Dimensions | |
Net Weight | 82.9 |
Gross Weight | 98 |
Carton Width | 41 1/2 |
Carton Height | 23 13/16 |
Carton Depth | 26 7/16 |
Maximum Height | 18 23/32 |
Cutout Width | 34 9/16 |
Cutout Depth | 21 1/8 |
Height | 3 21/32 |
Width | 36 5/16 |
Depth | 22 1/16 |
Details | |
Cooktop Surface Material | Ceramic Glass |
Electrical | |
Amps | 40 |
Power Cord Included | No |
Volts | 220 |
VENTILATION SYSTEM | |
CFM Motor Class | 310 |
Number of Speeds | 3 |
Refinement | |
Style | Cooktops |
Energy | |
Annual Energy Usage [kWh] | 258 |
Design Type | |
Design Expression | Black Glass |
