Design Specs:
- Available in 36”, 42”, 48”, 54”, 60”, 66” and 72” widths
- Generously proportioned 32” depth at bottom, 15″ depth at top, 24″ high hood provides an exceptional capture area
- Design of the stainless steel commercial baffle filters adds a professional appearance and improved performance
Product Features:
- Two or four internal sealed motors deliver 1200 CFM or 2300 CFM
- Heavy gauge commercial stainless steel (#304 grade, 22-gauge)
- Four 12” by 14” baffle filters improve performance (six or eight filters on larger models)
- Dimmable 50 watt halogen lights
- Optional in-line blowers deliver 1266 CFM
Installation & Care:
- Remote blower models are pre-wired for use with most in-line or exterior blowers (6 Amp maximum draw)
- Hoods with internal blowers are all pre-wired and pre-assembled
- 10” round discharge (two 10” on larger models)
- NEW Convertible Discharge model – both top and rear venting options
- Optional 2 piece, telescopic single (18″ wide) or double ( 30″ wide) Duct Covers are available, for up to 10′ ceiling, or additional Duct Covers up to 12′ ceiling

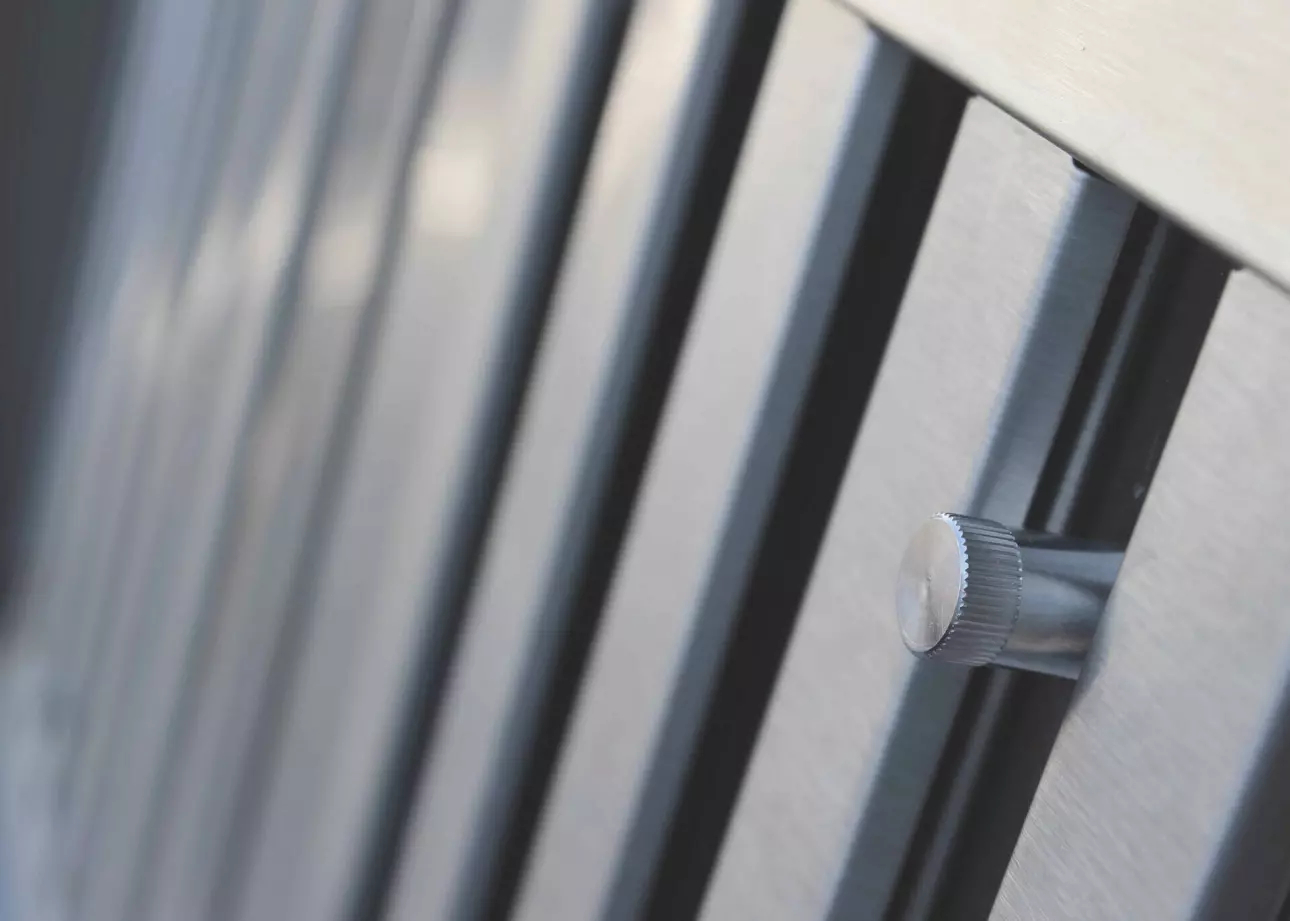

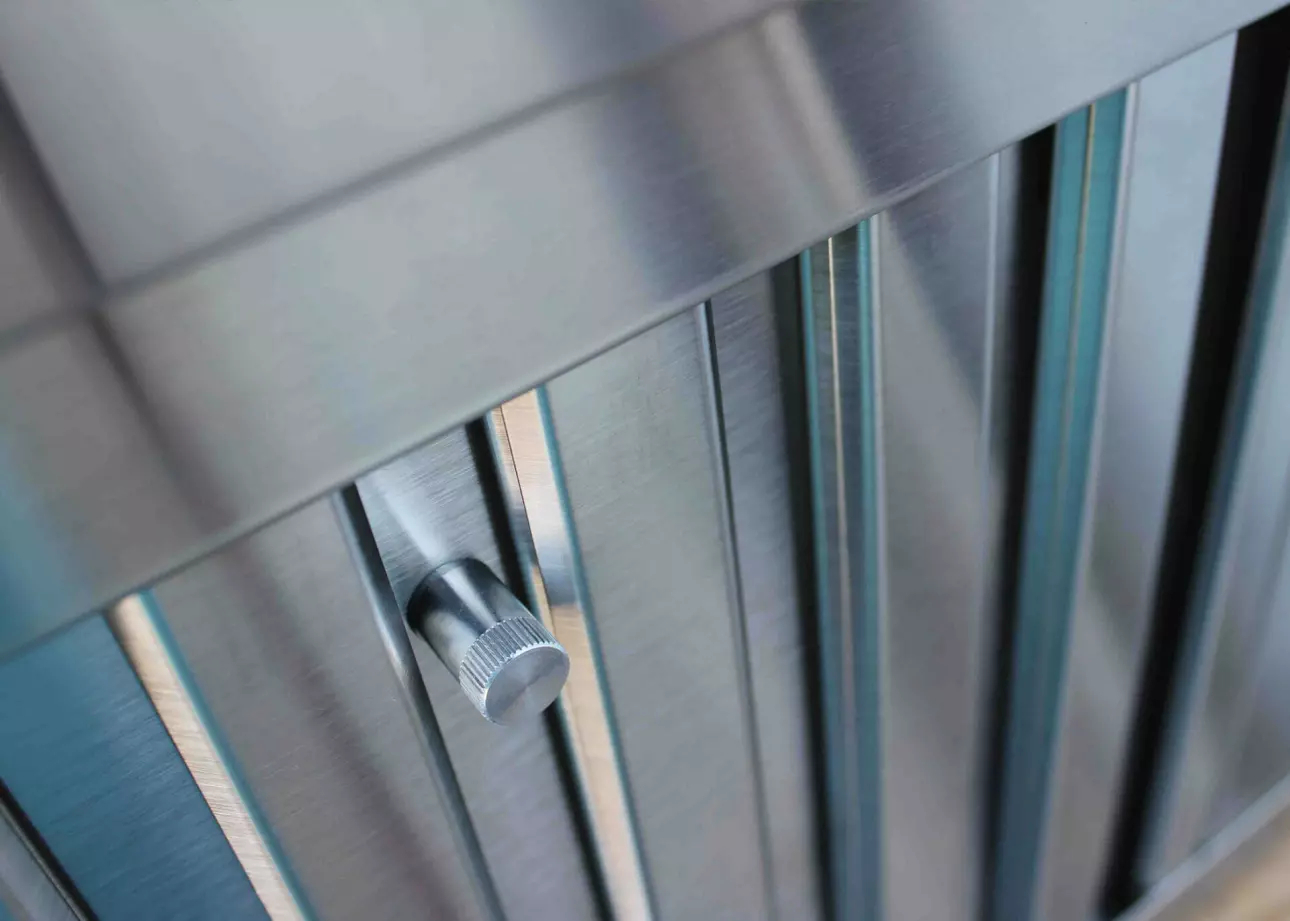

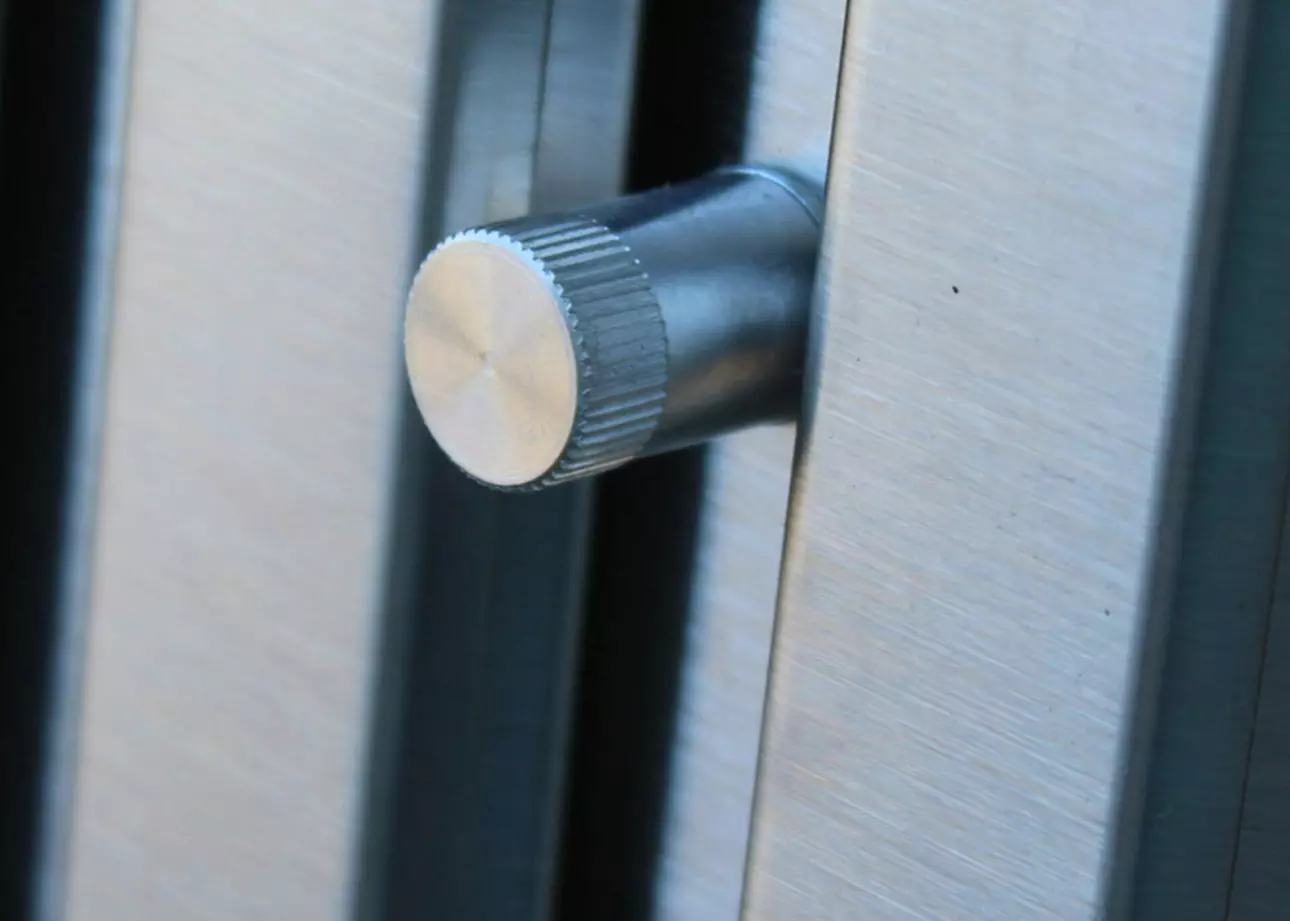

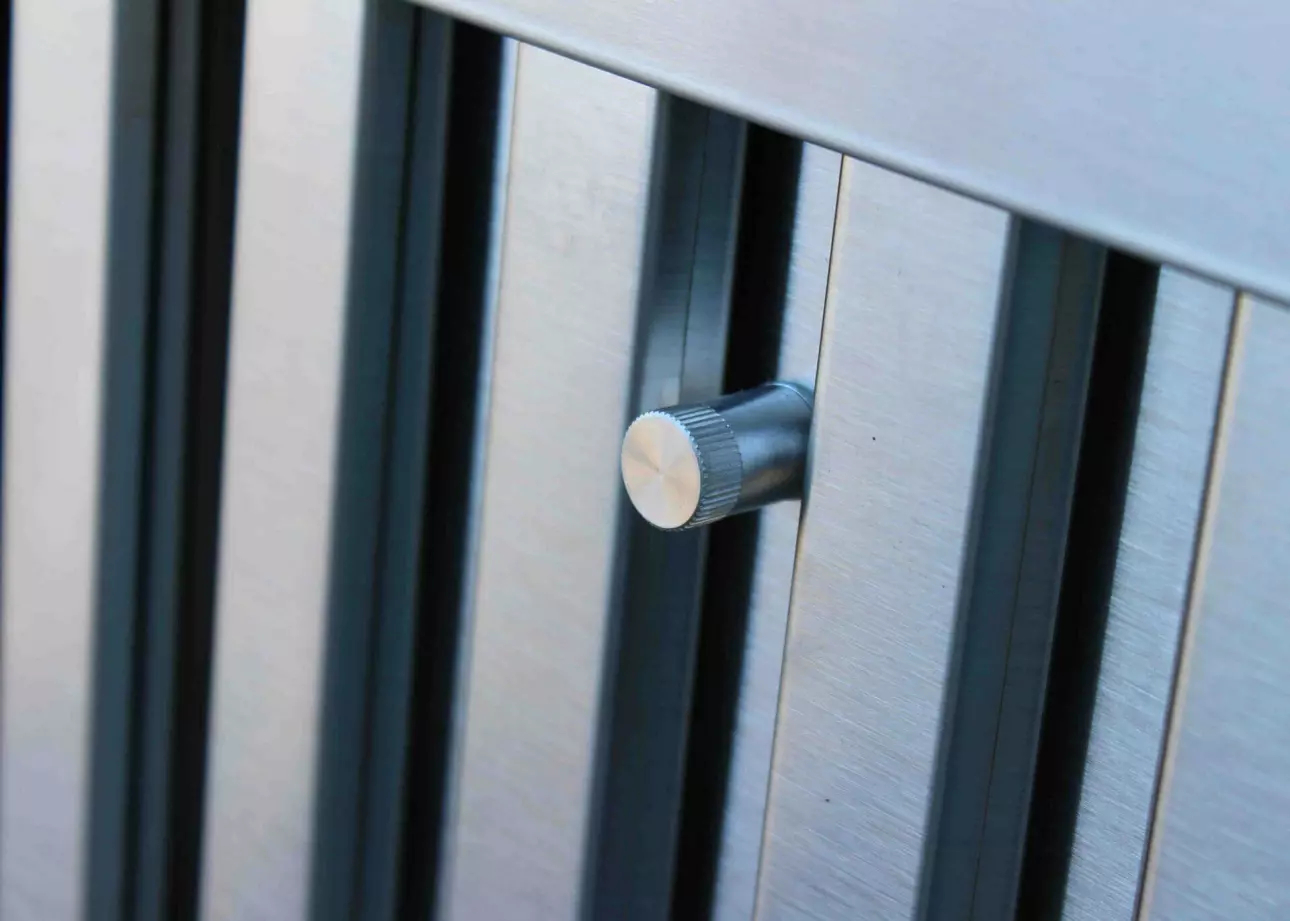

- Durable, dishwasher safe commercial stainless steel baffle filters
- All stainless steel exterior design is easy to keep clean and eliminates grease traps
| Specifications | |
|---|---|
| DIMMABLE LIGHT CONTROL | Yes |
| DUCT COLLAR | 10" |
| CONVERTIBLE DUCTING | Yes |
| S/S BAFFLE FLITERS | Yes |
| HALOGEN LIGHTS | 2 |
| IN-LINE OR REMOTE BLOWER | Yes |
