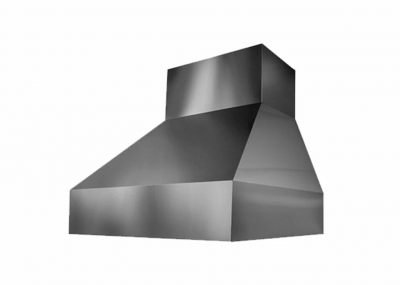

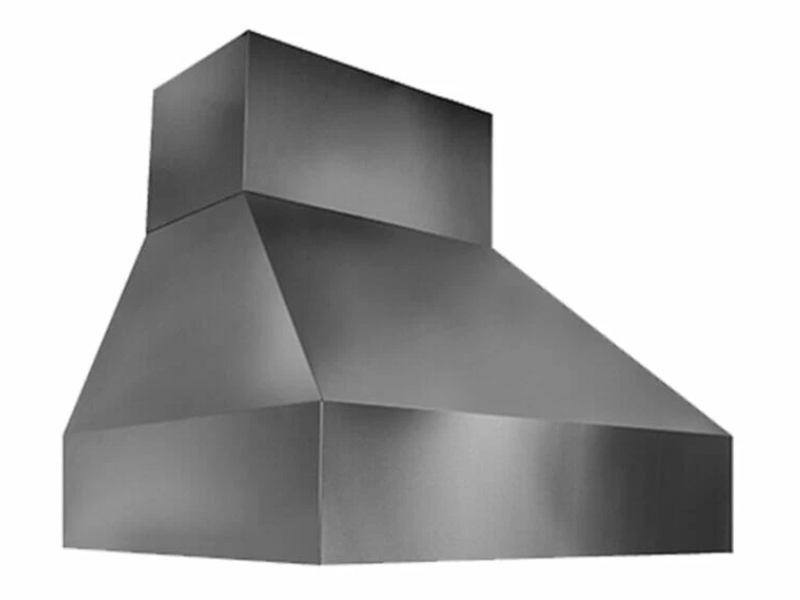

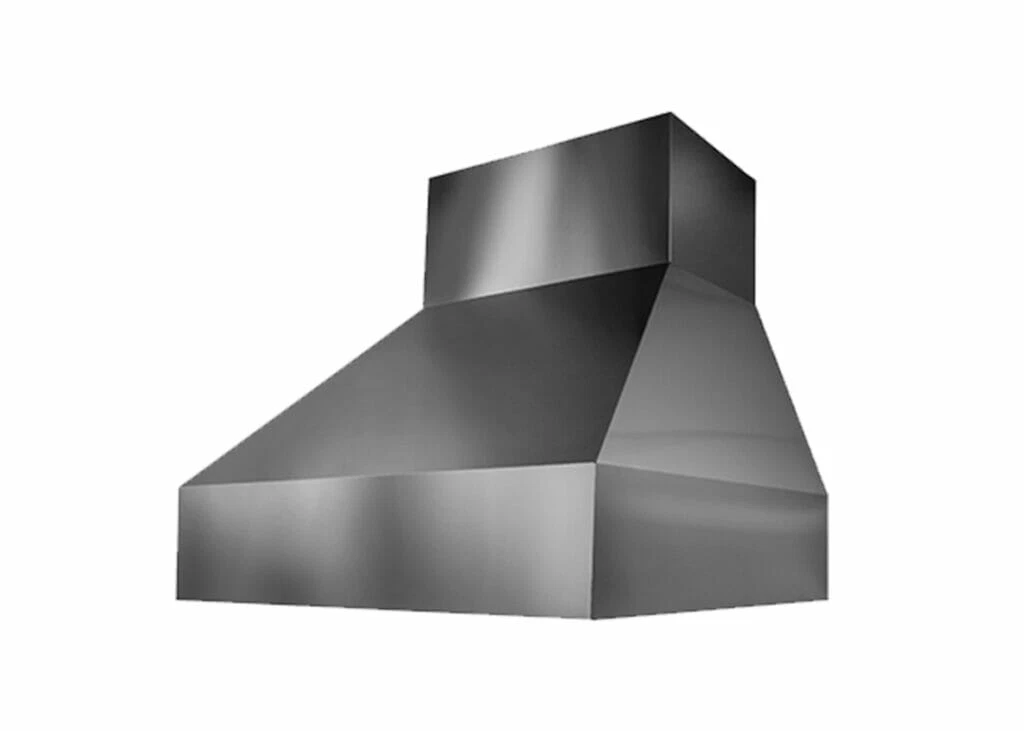

42" Trade Wind P7200 Series Pyramid Style Outdoor Barbecue Grill Hood - P7242
You may also like
Design Specs:
- Available in 36”, 42”, 48″, 60″ and 72″ widths
- Generously proportioned 32” depth of hood bottom, 15″ depth at top, 24″ high, provides an exceptional capture area

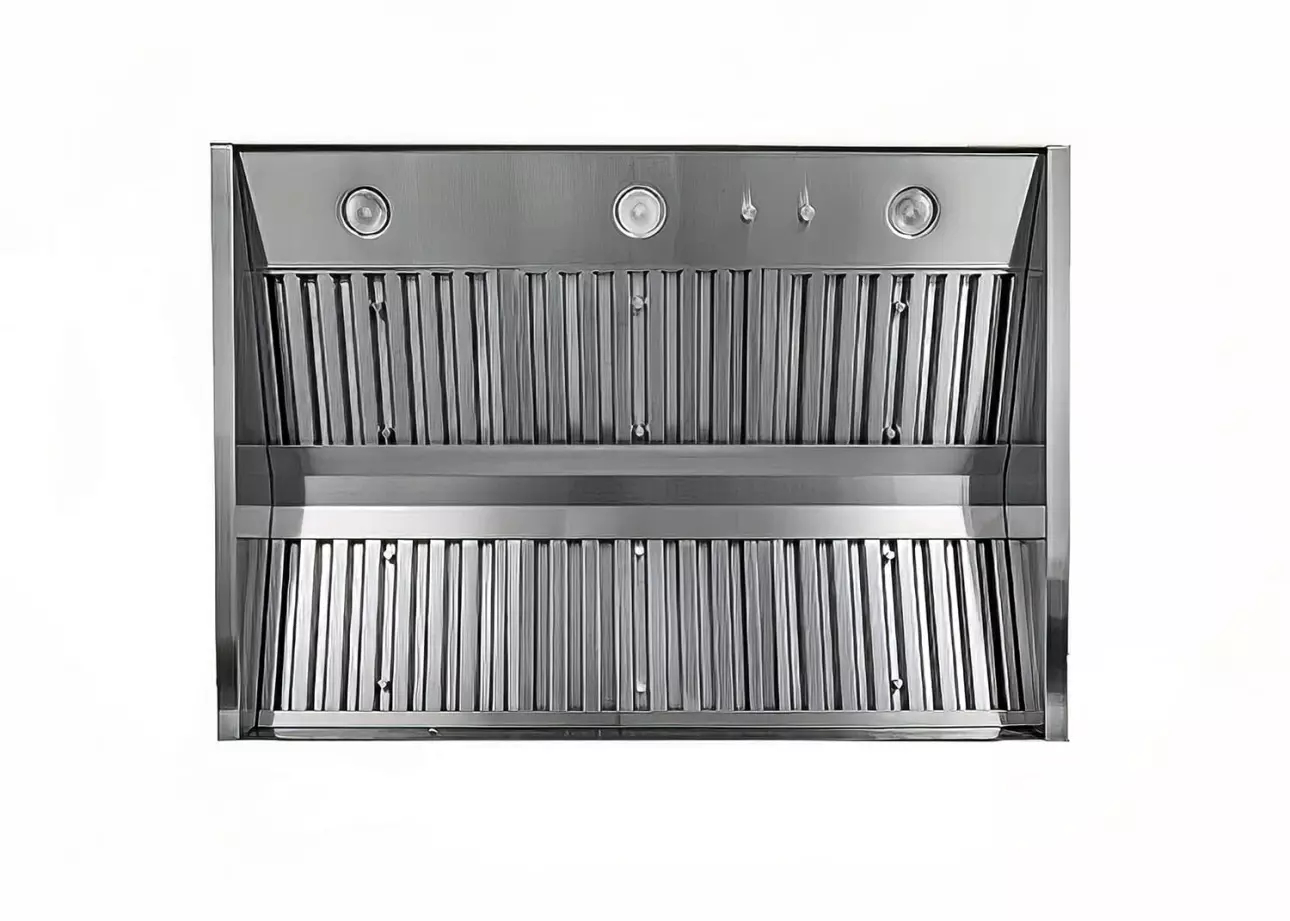

- Design of the stainless steel commercial baffle filters adds a professional appearance and improves the performance
Product Features:
- Two or four internal sealed motors deliver 1200 CFM or 2300 CFM
- Heavy gauge commercial stainless steel (#304 grade, 22-gauge)
- Four 12” by 14” baffle filters improve performance (six filters on the larger model)
- Dimmable 50 watt halogen lights
- Optional in-line blowers deliver 1266 CFM
Installation & Care:
- Remote blower models are pre-wired for use with most in-line or exterior blowers
- Hoods with internal blowers are all pre-wired and pre-assembled
- Top 10” round discharge, two 10” on larger models. (For rear discharge, change blowers’ orientation)
- 2 piece, telescopic Duct Cover provided for adjustment up to 10′ ceiling, optional Duct Cover for up to 12′ ceiling is available
- Durable, dishwasher safe commercial stainless steel baffle filters
- All stainless steel exterior design is easy to keep clean and eliminates grease traps
| Specifications | |
|---|---|
| DIMMABLE LIGHT CONTROL | Yes |
| DUCT COLLAR | 10 |
| CONVERTIBLE DUCTING | Yes |
| S/S BAFFLE FLITERS | Yes |
| HALOGEN LIGHTS | 2 |
| IN-LINE OR REMOTE BLOWER | Yes |
| Colour | Stainless Steel |
| FRONT TO BACK | 32 |
