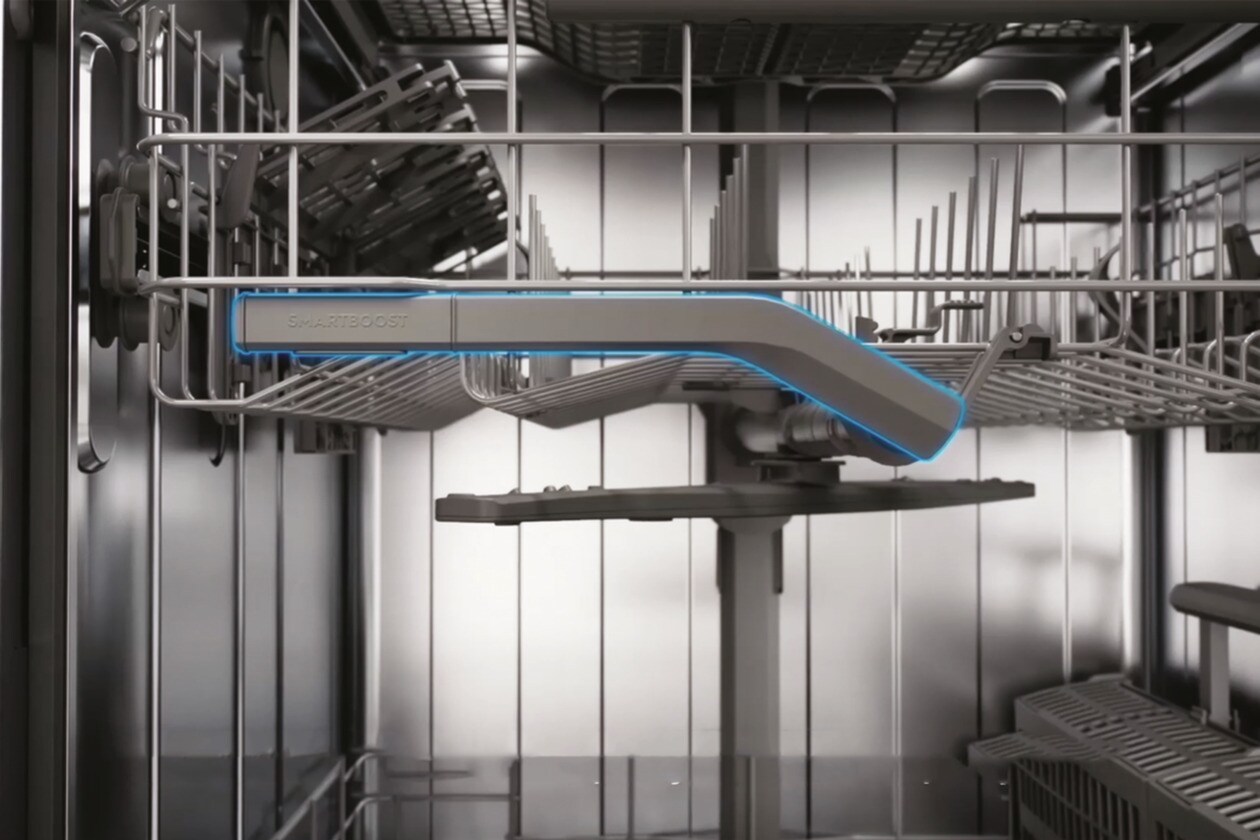

SmartBoostTM Clean Technology
Our patented SmartBoostTM Clean technology effectively premixes your detergent with water before reaching your dishes, delivering powerful cleaning results and helping remove tough baked on foods
Max Dry Technology
Our most powerful drying feature with a final rinse cycle hot enough to also sanitize.
Save over 1,000 gallons of water every year
By avoiding hand washing and putting your dishes straight in the dishwasher, not only will you get great cleaning results, you can save over 1000 gallons of water per year. 1
DishSense Sensor Technology
Avoid pre-rinsing with our DishSense sensor technology that automatically adjusts the cycle based on the soil level of your dishes.
Target Wash Zones
Completely clean dishes of all shapes and sizes like water bottles, casserole dishes wine glasses and more with our Target Wash Zones
LuxCare Wash Arm
Our exclusive LuxCare Wash Arm uses water more effectively to tackle even the toughest dishes without wasting valuable resources
30-Minute Clean Cycle
Flexibility to get dishes sparkling clean between courses with our 30-Minute Clean cycle

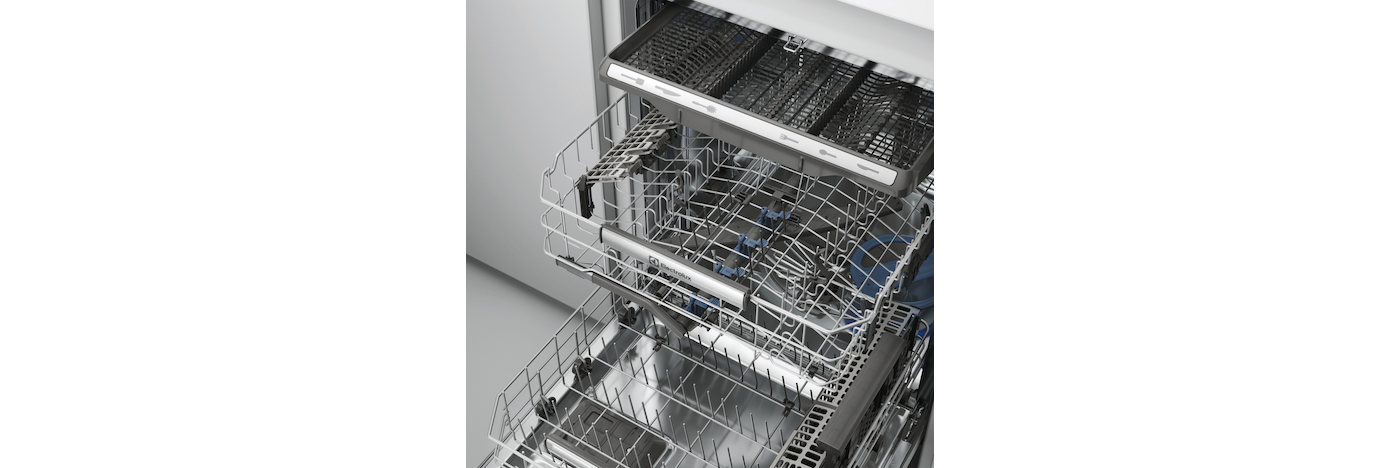

Third-Level Rack
Easily clean serving utensils and culinary tools with the seamless organization of our third-level rack
Luxury-Glide Dish Racks
Dish racks so smooth they extend effortlessly to help making loading and unloading easier.
Premium Capacitive Touch User Interface
Our sleek designed capacitive multi-touch user interface is intuitive and helps you to easily select the right program for your dish load
Premium Capacitive Touch User Interface
Our sleek designed capacitive multi-touch user interface is intuitive and helps you to easily select the right program for your dish load
Adjustable Racks
Make loading the dishwasher easier with adjustable racks, providing enough space to fit even your largest items.
National Sanitation Foundation Certified
Sanitize option removes 99.9% of common household bacteria. 2
Quiet Operation with Luxury-Quiet System
So quiet your dishwasher won't disturb you, even if you run it while you're in the room -- runs at 45 dBA
Convenient LED Floor Beam Indicators
Illuminate the floor with a blue light when your dishes are washing and a white light when they are clean
ENERGY STAR Certified
Maximize your energy and dollar savings with ENERGY STAR Certified Appliances.
Platinum Star Limited Warranty
Our exclusive limited warranty that includes two year coverage on parts and one year on labor 3
| Certifications and Approvals | |
|---|---|
| NSF Certified | Yes |
| Meets ASSE 1006 Requirements | Yes |
| cUL Listed | Yes |
| UL Listed | Yes |
| ENERGY STAR Certified | Yes |
| CEE Tier | Tier 1 |
| ADA Compliant | No |
| Installation | |
| Water Inlet Location | Left Bottom Front |
| Number of Leveling Legs | 3 |
| Connection Location | Right Bottom |
| ELECTRICAL SPECIFICATIONS | |
| Voltage Rating | 120 V |
| Amps @ 120 Volts | 15 Amps |
| Dimensions and Volume | |
| Depth With Handle | 26 69/100" |
| Depth With Door Open | 50 1/4" |
| Depth | 24 1/4" |
| Width | 24" |
| Maximum Height | 35 3/4" |
| Minimum Height | 33 3/4" |
| Exterior | |
| Door Type | StayPut |
| Door Latch | Pull |
| Door and Handle Design | Handle |
| CONTROLS | |
| Rinse Aid Indicator | Yes |
| Control Lock | Yes |
| Digital Display | Yes |
| Delay Start Hours | 1-12 Hours |
| Control Location | Top |
| General Specifications | |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Prop 65 Label | No |
| Product Weight | 86 lbs |
| Annual Energy | 240 kWh |
| Sound Level | 45 dBA |
| Third Level Rack | |
| Rack Coating | Nylon |
| Third Level Rack | Yes |
| UPPER RACK | |
| Targeted Wash Zone | Yes |
| Stemware Holder | Yes |
| Rack Type | Deluxe |
| Rack Handles | Yes |
| Rack Coating | Nylon |
| Minimum Height Clearance | 8 1/2" |
| Maximum Height Clearance | 10 3/8" |
| Fold-Down | Yes |
| Cup Shelf | Yes |
| Lower Rack | |
| Rack Type | Deluxe |
| Rack Coating | Nylon |
| Number of Silverware Basket Lids | 2 |
| Number of Silverware Basket | 1 |
| Minimum Height Clearance | 11 1/4" |
| Maximum Height Clearance | 13 1/4" |
| Fold-Down | Yes |
| Dishwasher Options | |
| Start/Cancel | Yes |
| Heated Dry | Yes |
| Drying System | Perfect Dry |
| Dry - Heat | Yes |
| Dry - Max | Yes |
| Dry - Air | Yes |
| Air Dry | Yes |
| Dishwasher Cycles | |
| Sanitize | Yes |
| Rinse Only | Yes |
| Quick | Yes |
| Number of Cycles | 8 |
| Normal | Yes |
| Heavy | Yes |
| Favorite | Yes |
| Energy Saver | Yes |
| China Crystal | Yes |
| DISHWASHER | |
| Wash System | Direct Feed |
| Wash Levels | 5 |
| Tub Material | Stainless Steel |
| Tub Design | Tall Tub |
| Tub Color | Stainless Steel |
| Middle Spray Arm | Bi-Beam |
| Upper Spray Arm | Spray Arm |
| Status Indicator Floor Beam | Yes |
| Lower Spray Arm | Orbit |
| Smart Soil Sensor | Yes |
| Rinse Aid Dispenser | Yes |
| Place Setting Capacity | 14 |
| Motor Speeds | Multi-Speed |
| Leak Detection System | Yes |
| Interior Light | Yes |
| Hard Food Disposer or Filtration | Yes |
| Filtered Water | 100 % |
| Filter Material | Stainless Steel |
| Filter Trap | Removable |
| Detergent Dispenser | Yes |
| Automatic Temperature Control | No |
