Features

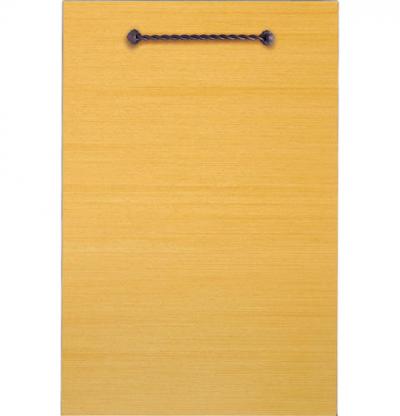

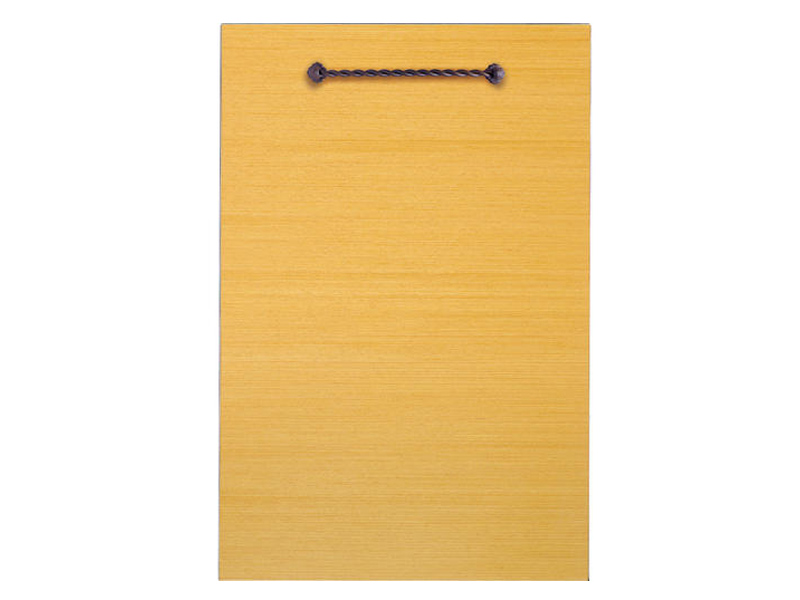

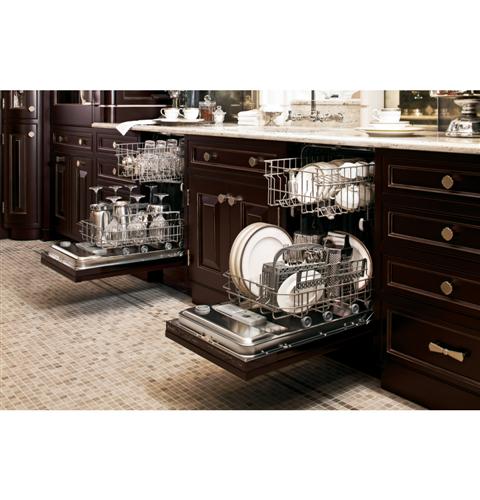

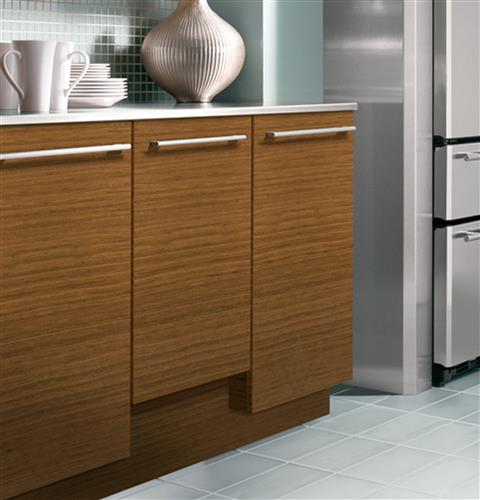

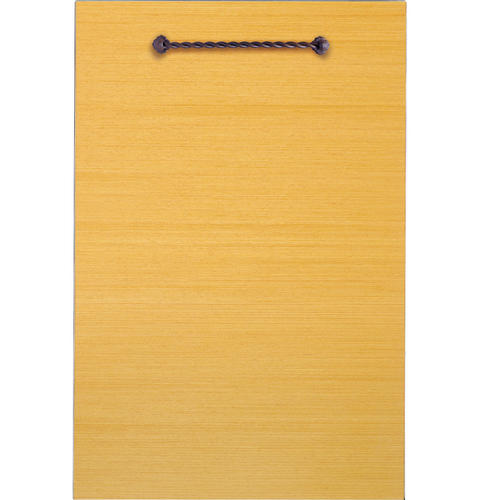

Custom panel model
Designed for personalization with customer-supplied cabinet-compatible panel and custom handle

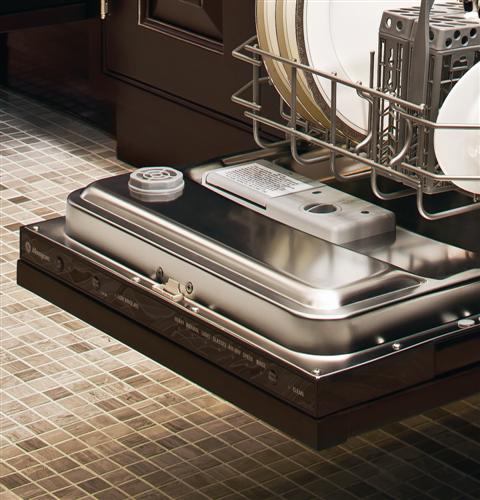

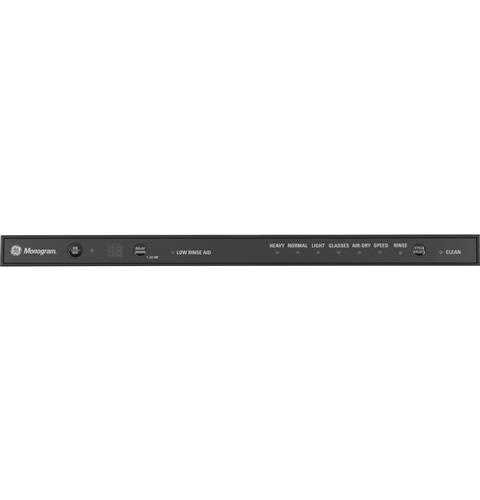

Hidden, integrated electronic controls
Allow easy activation of wash cycles: heavy wash, normal wash, light wash, china and rinse only

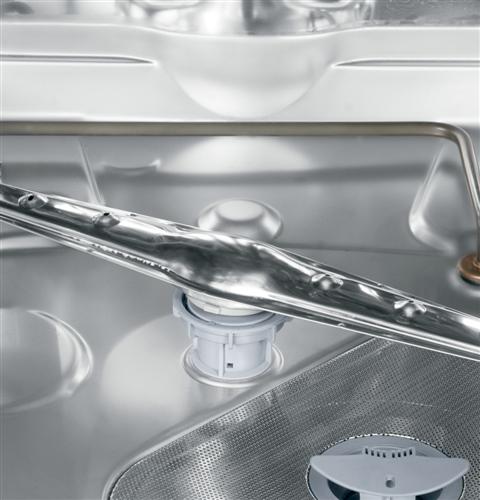

Five-level wash system
Provides effective, yet quiet cleaning power

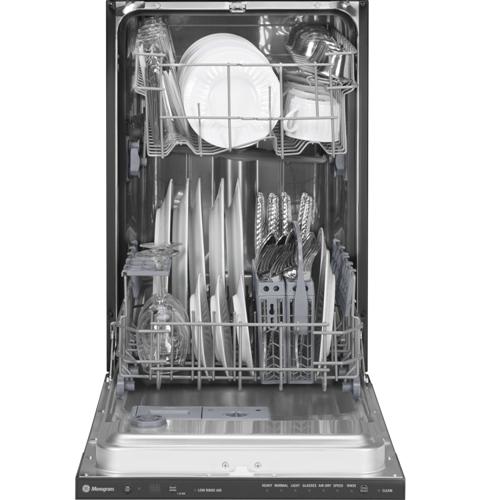

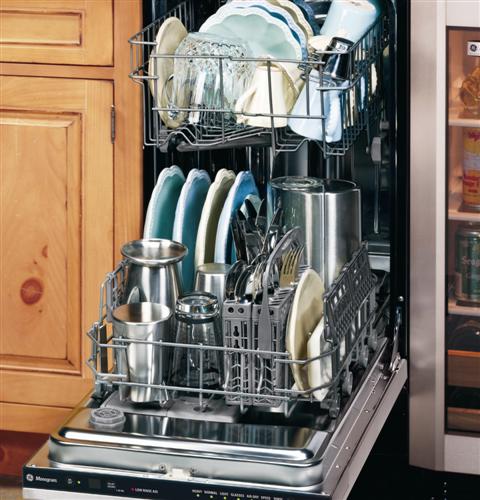

Pearlescent gray racks with ball-tipped tines
Provide plenty of space and loading flexibility

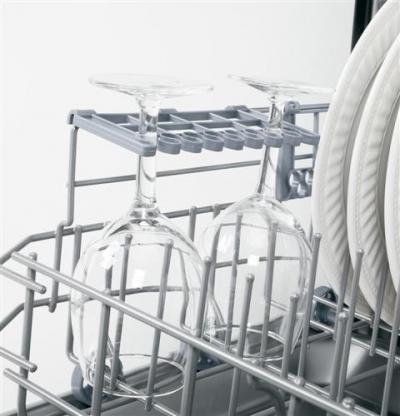

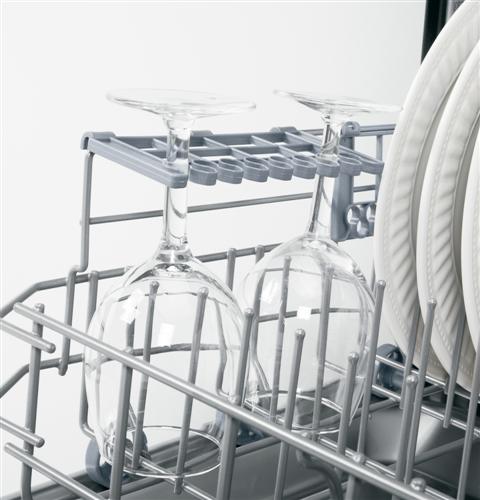

Stem Safe shelf
Allows for odd-shaped items and delicate stemware
| Inputs & Outputs | |
|---|---|
| Style | Built-In |
| Tub and Door Liner | Stainless Steel |
| Control Type | 3 Pushbuttons, Fully Integrated Electronic, Top Controls |
| Dishwasher Control Features | Start/Reset Pad |
| Wash System | 5-Level, Standard |
| Wash System Features | Drain Hose, Dual Pumps and Motors |
| Wash Arms | 3-Direct Feed |
| Water Filtration System | 3-Stage Manual Clean Filtration |
| Dispenser | Rinse Aid with Indicator, Adjustment and LED |
| Number of Cycles | 7 |
| Dishwasher Cycles | Air Dry, Glasses, Heavy Wash, Light Wash, Normal Wash, Rinse Only, SpeedWash |
| Number of Options | 1 |
| Dishwasher Options | Delay Start 1-24 Hr. with Countdown |

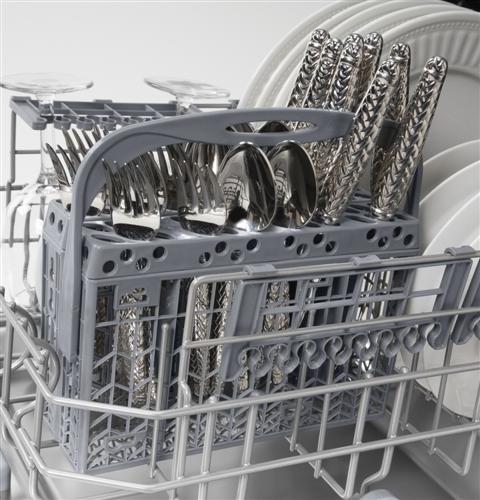

| Rack Features | 2 Plastic Utility Shelves, 4 Stem Safe - Lower Rack, Ball Tines - Upper Rack, Bowl Tines - Upper Rack, Standard Silverware Basket |
| Racking System | Towerless |
| Lower Rack | Towerless |
| Dishwasher Drying Features | Calrod Heater |
| Leveling System | Leveling Legs |
| Latch | Pull with Handle |
| Exterior Style | Custom Panel |
| Custom Panel Ready | 3/4-Inch Overlay Panels |
| Economical / Quiet | |
| Quiet Package | 60 dBA |
| Quiet Features | Black Sealed Toe Kick, Tub Collar Trim |
| Motor Type | Standard |
| Outer Wrap | U-Blanket |
| Door Insulation | Insulation, Mastic |
| Weights & Dimensions | |
| Cabinet Depth | 24 in |
| Cabinet Width | 18.0 |
| Approximate Shipping Weight | 78.0 |
| Net Weight | 76.0 |
| Overall Height | 32.5 |
| Height w/ Legs Retracted - Minimum Height | 32.5 |
| Height w/Legs Extended - Maximum Height | 35.0 |
| Overall Depth | 22.5 |
| Overall Width | 17.5 |
| Appearance | |
| Color Appearance | Custom Panel and Handle Required |
| Design Style | European Stainless Steel |
| Door Appearance | Fully integrated door for custom panels |
| Handle Design | Handle required |
| Door Panel Color | Custom Panel Required |
| Power / Ratings | |
| Calrod Heater Watts | 550 |
| Electrical Requirements | 120V; 60Hz; 9.0A |
| Warranty | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
