Features

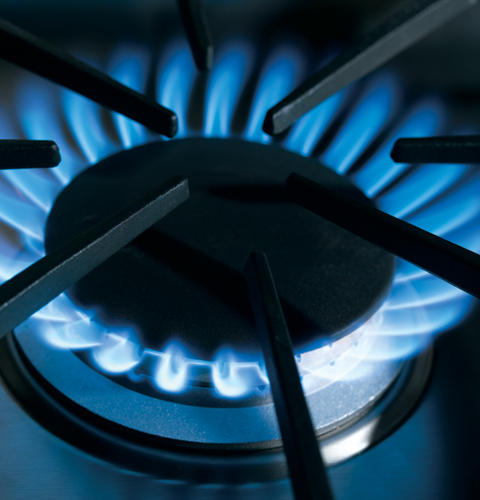

Dual-flame stacked burners
Provide complete 140F simmer-to-rapid-boil flexibility on all burners; the burners are sealed to the cooktop for easy cleaning
High-output cooking power
Delivered by an 18,000 BTU burner, totaling 50,000 BTUs

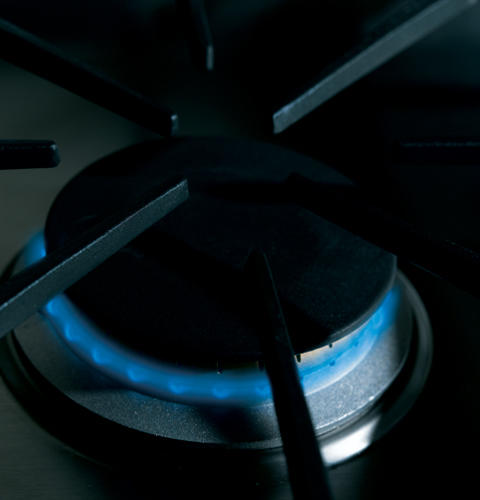

Silent, precise simmering
Delivers a consistent 140F temperature without cycling on and off; no simmer plate required
Electronic ignition
Ensures a continuous flame and reignites automatically if accidentally extinguished

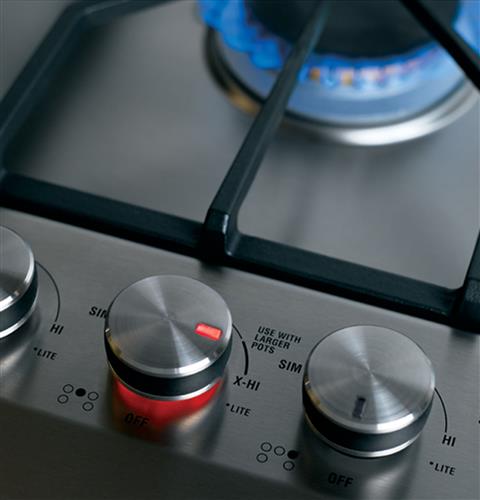

Hand-machined, stainless steel knob controls
Rotate with smooth precision; A red indicator light embedded in each knob makes it easy to view and select heat settings

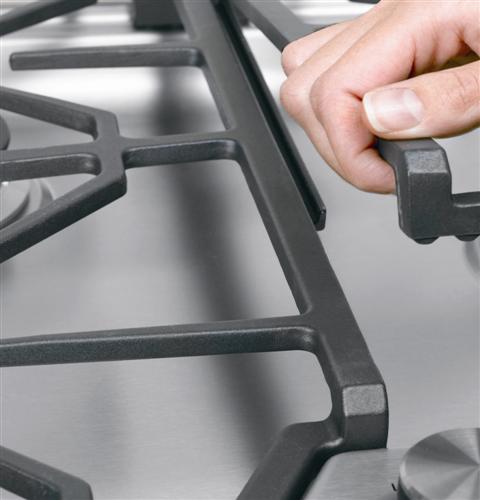

Interlocking, continuous grates
Create a steady surface for cookware and are integrated into the cooktop for a clean, finished appearance
| Inputs & Outputs | |
|---|---|
| Cooktop Burner Type | 4 Sealed |
| Cooktop Surface | Stainless Steel |
| Ignition System | Electronic |
| Automatic Re-Ignition | Yes |
| 140 Deg. Simmer Burner | 4 |
| Configuration | 4 Sealed Cooktop Burners |
| Dual Flame Stacked Burners | 4 |
| Control Location | Right Side |
| Burner Indicator Light | Yes - in Knob |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Burner Grate Material | Cast-Iron; Porcelainized |
| Fuel Type | Natural Gas (factory set) |
| Tactile Grip Knobs | Yes |
| Valves (Degree of Turn) | 250 |
| Appearance | |
| Color Appearance | Stainless Steel |
| Control Knobs | Stainless Steel |
| Weights & Dimensions | |
| Approximate Shipping Weight | 54.0 |
| Cabinet Width | 30.0 |
| Cutout Dimensions (Width x Depth) (In.) | 28-1/2 x 19-5/8 |
| Net Weight | 50.0 |
| Overall Depth | 21.625 |
| Overall Height | 3.75 |
| Overall Width | 30.75 |
| Power / Ratings | |
| Burner BTU Ratings (000's/BTU) - LP Gas | (1) 15.0; (3) 9.1 |
| Burner BTU Ratings (000's/BTU) - Natural Gas | (1) 18.0; (1) 12.0; (2) 10.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5.0A |
| Accessories | |
| Conversion Kit | Included - Nat. Gas to LP |
| High Altitude Kit | WB49X10090 |
| Warranty | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
