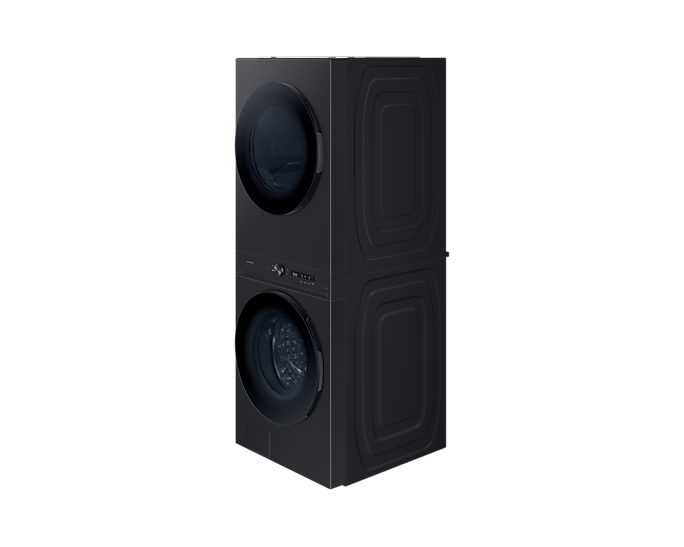

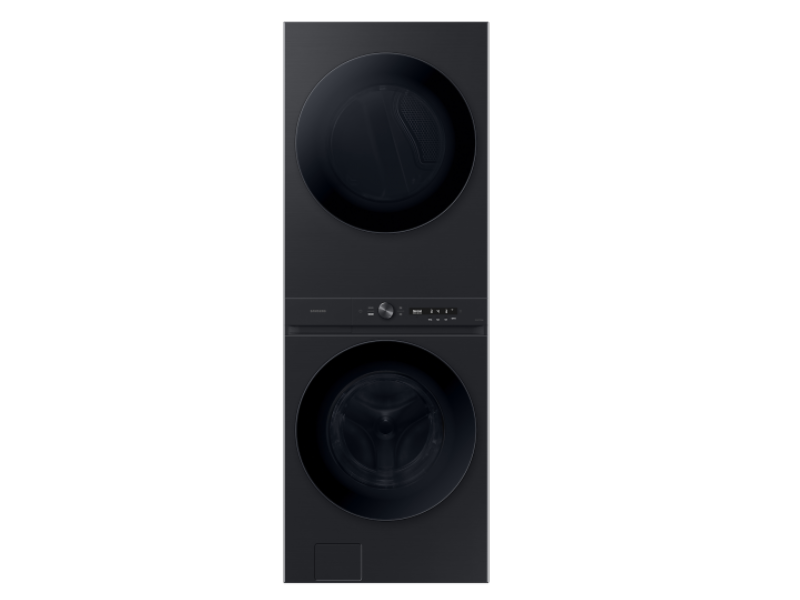

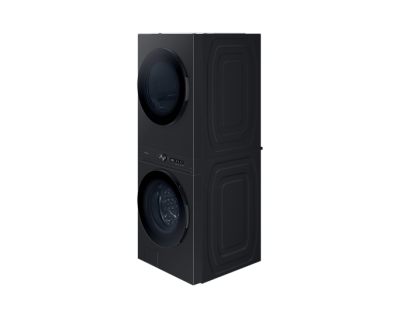

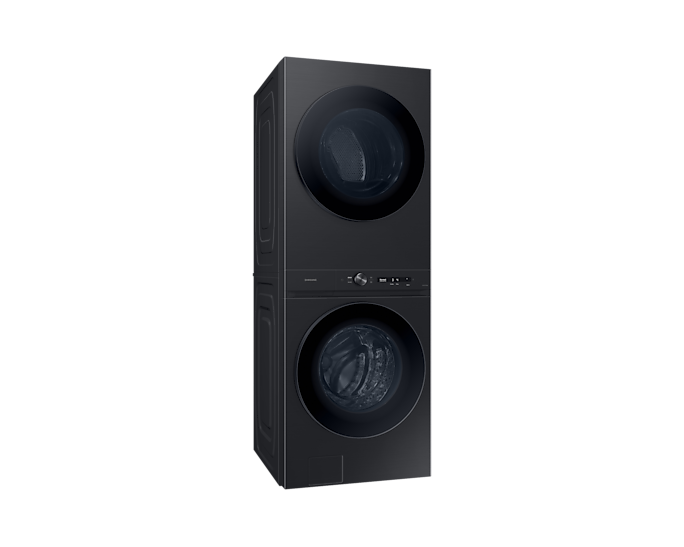

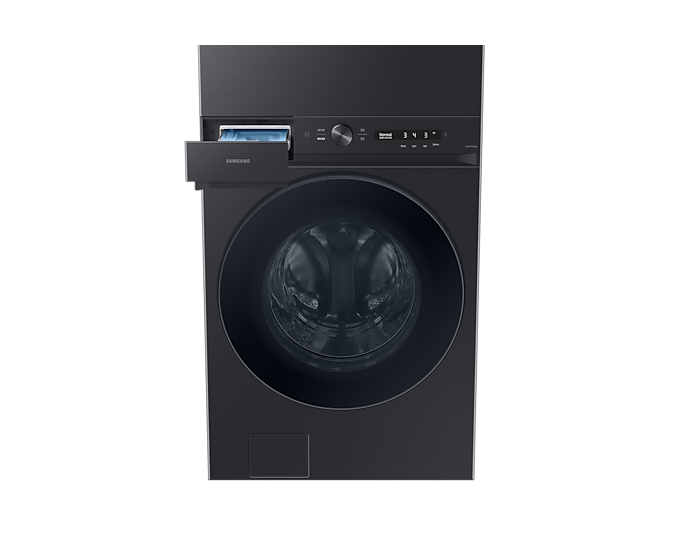

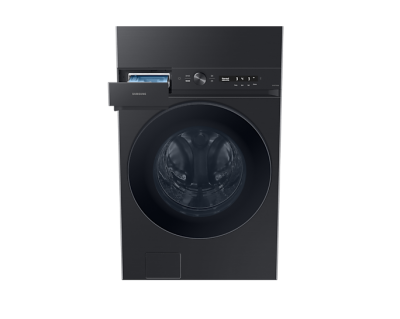

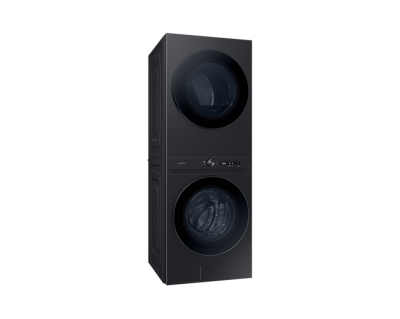

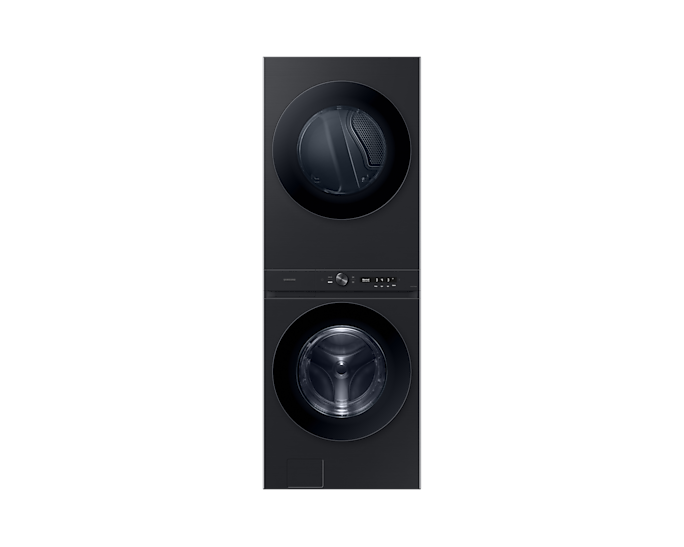

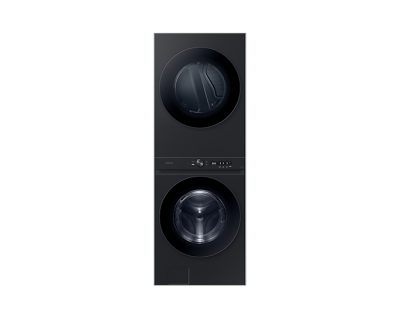

27" Samsung 5.3 cu.ft 100 Series Laundry Hub with 5.3 cu.ft Washer and 7.6 cu.ft Dryer - WH46DBH100EVAC
You may also like
- Fit your space and ditch the step stool with Laundry Hub™. You can control both the washer and the dryer from a centralized control panel.
- Wash more items in a single load with 5.3 Cu.Ft. of capacity
- A shallow depth allows for easy closet installation.

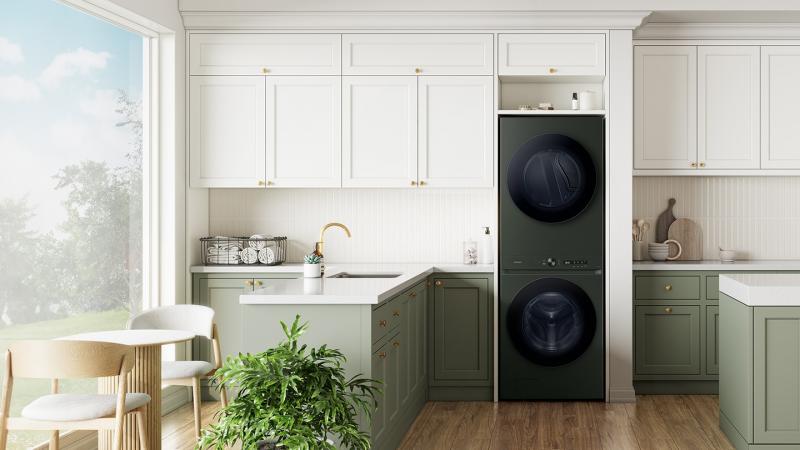

Optimize space* and ditch the step stool with Laundry Hub™.
Controls within reach

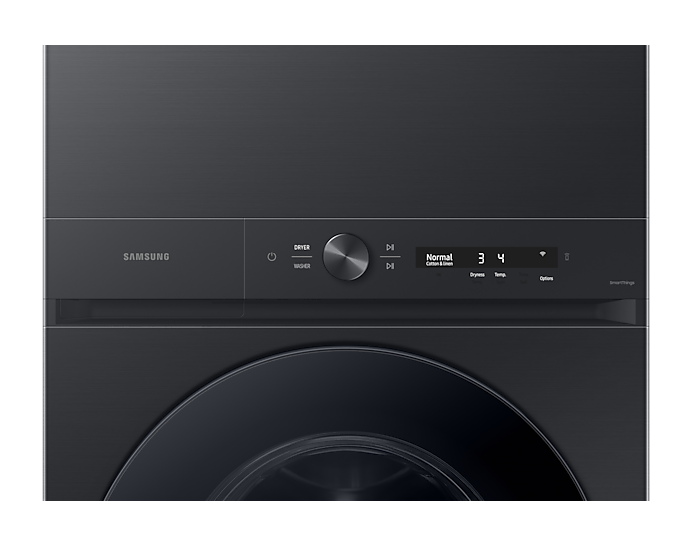

Laundry Hub™ with EasyReach Controls™
Fit your space and ditch the step stool with Laundry Hub™. You can control both the washer and the dryer from a centralized control panel. Laundry reimagined with a clean, flat-panel design and AI-powered features that simplify your cleaning routine.
* Height comparison: '22 BESPOKE washer/dryer (serial installation) = 1,971mm vs. '24 BESPOKE Laundry Hub = 1,890mm.
Wash more items in a single load
5.3 cu. ft. Large Capacity
Large Capacity lets you wash more items in a single load, meaning fewer loads, less time in the laundry room, and more time doing the things you love.*
* As compared to 27" wide front load washers.
Convenience
Simplify your laundry routine

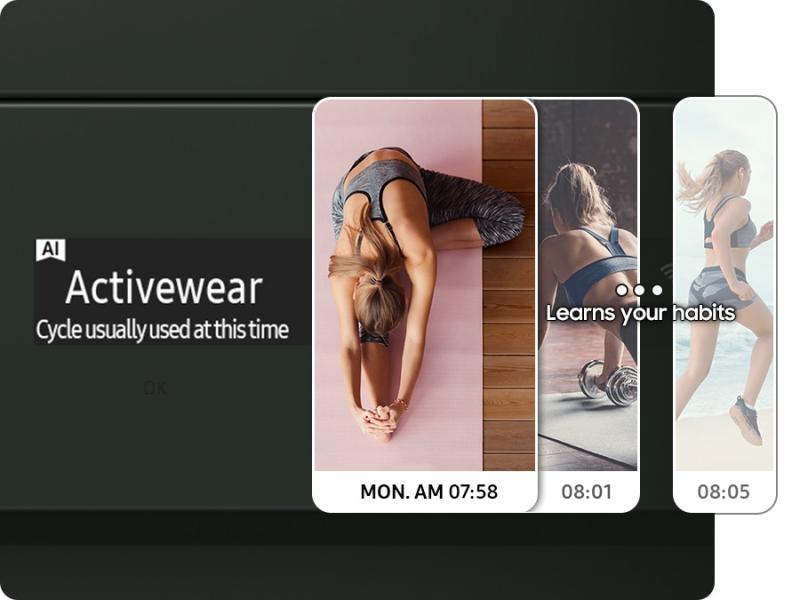

AI Smart Dial
One Dial for your laundry needs. Samsung's easy to use AI Smart Dial simplifies your laundry machine's control panel. It learns and recommends your favourite cycles*, and allows you to customize your cycle list, making laundry day a breeze.
* AI Smart Dial makes recommendations after 30 days of use based on cycle selections, time selected, and other factors.
Cleaner, safer vents
Vent Sensor
A sensor monitors the condition of your dryer's air duct to make sure it’s running well. Plus, automatic alerts let you know when it’s time to clean your air duct or check for obstructions.
Worry-free drying
Sensor Dry
Automatically optimizes the time and temperature of your drying cycle to help protect your clothes from heat damage, while avoiding excess energy use.

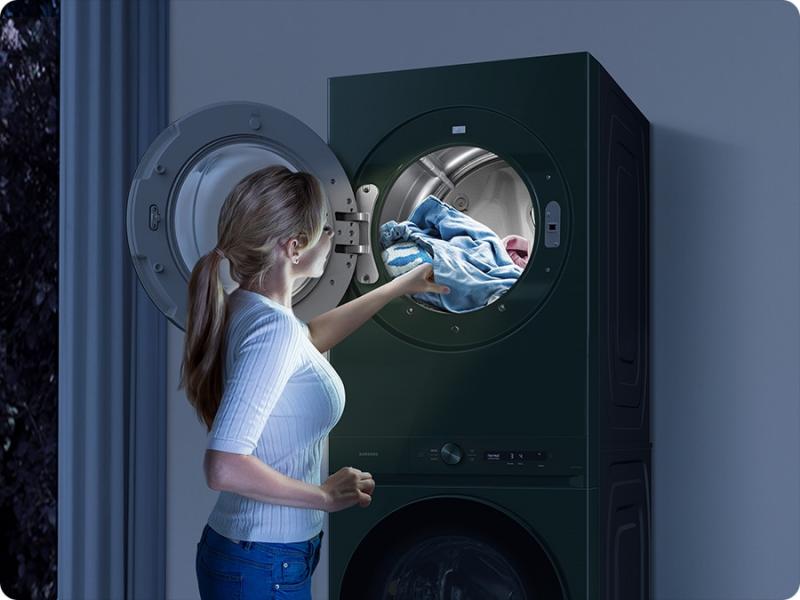

Put an end to stray socks
Drum Light
An internal drum light helps to illuminate the content in your dryer, meaning fewer missed socks or small items.
SmartThings
Connect your life with SmartThings
Wi-Fi Embedded
Use your washer and dryer easily and effectively with the SmartThings App*. The Laundry & Dry Planner optimizes your daily schedule**. And Auto Cycle Link**** selects an optimal drying course after a wash.
* Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required. It stores user data, preferences and usage patterns to suggest the most useful options. ** The recommended washed and dried cycle is only based on time and may not be appropriate for the type of fabrics or stain level of the articles being washed. *** A Wi-Fi connection is required at all times, which may increase energy consumption.
SmartThings Clothing Care
Tailored care. Effortless laundry.
Enjoy a more personalized and efficient laundry experience. SmartThings Clothing Care* analyzes your usage patterns** and external factors to make recommendations. It also creates customized clothing care cycles to suit your lifestyle***. And you can buy laundry supplies using Alexa Smart Reorder****.
* Available on Android and iOS devices. A Wi-Fi connection is required. ** Stores user data, preferences and usage patterns to suggest the most useful options. *** The user will be solely responsible for any consequence(s) that may result, including but not limited to any damage or harm caused by incorrect information provided by the user. **** To use Alexa Smart Reorder to buy supplies, you need to link SmartThings to Alexa and activate the Alexa Smart Reorder.
SmartThings Energy
Efficient energy use. Smart savings.
Manage your energy usage SmartThings Energy* provides energy efficiency tips. It also monitors the energy consumption of appliances** in real-time and compares it to the previous month. And it alerts you if your monthly targets might be exceeded.
* Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required. ** SmartThings Energy currently works with around 40 Samsung home appliances that are SmartThings enabled. These include washing machines, clothes dryers, dish washers, air conditioners, air purifiers, vacuum cleaners, ovens, hoods, cooktops, microwave, TVs (from June 2022) and energy meters.

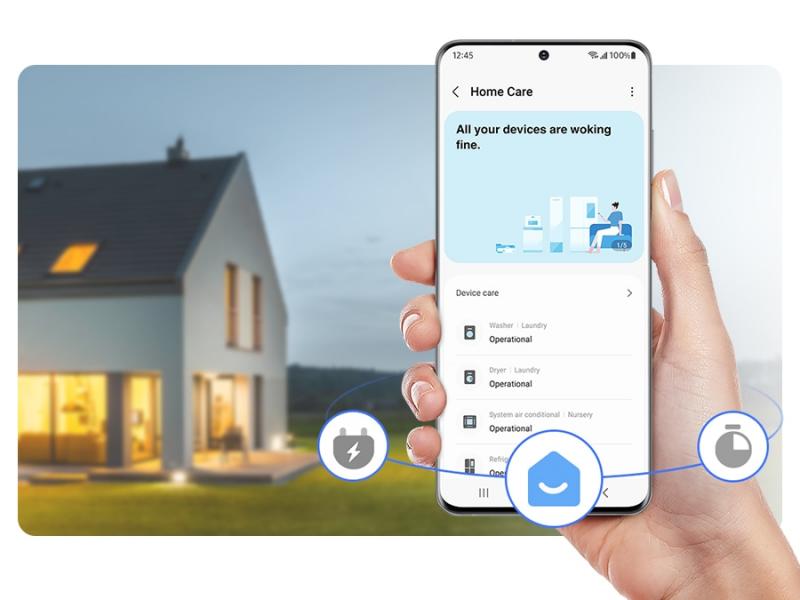

SmartThings Home care
Smart maintenance. Easy upkeep.
Take care of your washer or dryer easily. SmartThings Home Care* notifies you when parts need replacing and helps troubleshoot problems. It also shows you how to update the software of services and devices**. And it provides useful tips on using your appliance, as well as a user manual.
* Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required. ** Only available in the US.
Hygiene
Cleans & refreshes

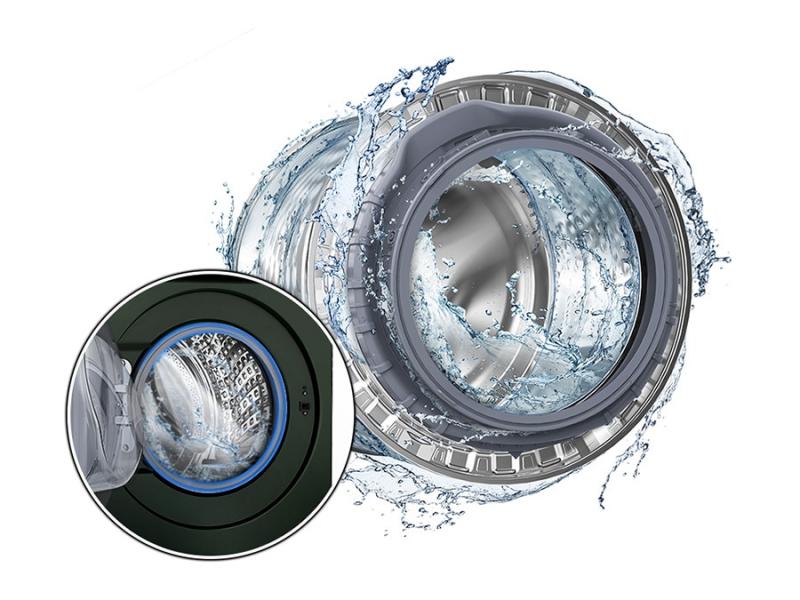

Self Clean+
Keep the inside of the washer hygienically clean and fresh. Self Clean+ removes dirt and odor-causing bacteria in the drum by soaking, pulsating and spinning. A powerful water jet and a high spin speed also remove dirt from the door gasket*. And it notifies you when it needs cleaning**.
* Based on internal testing. ** Provides a notification after every 40 cycles.
Gently remove stains

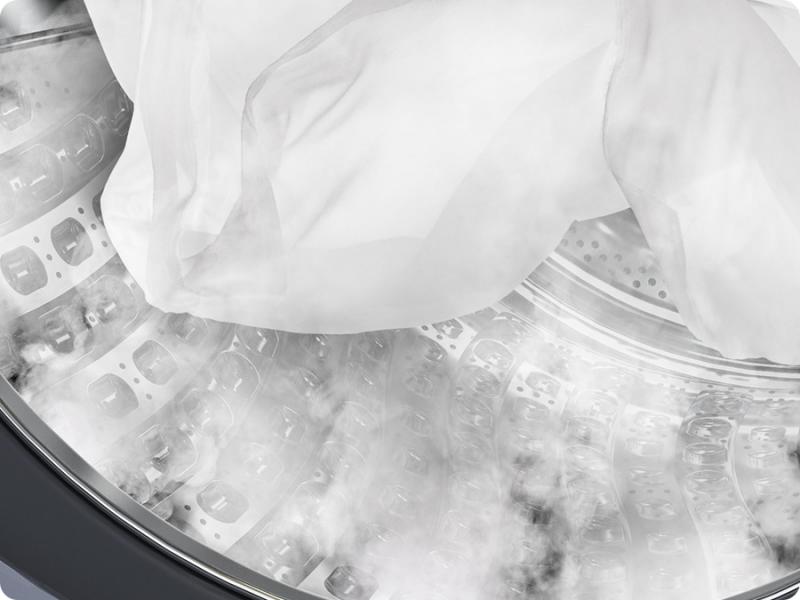

Steam Wash
The power of steam helps to gently remove stains. Steam is released from the drum so items in the load are thoroughly saturated, helping to get a deep clean.
Stop the fluff

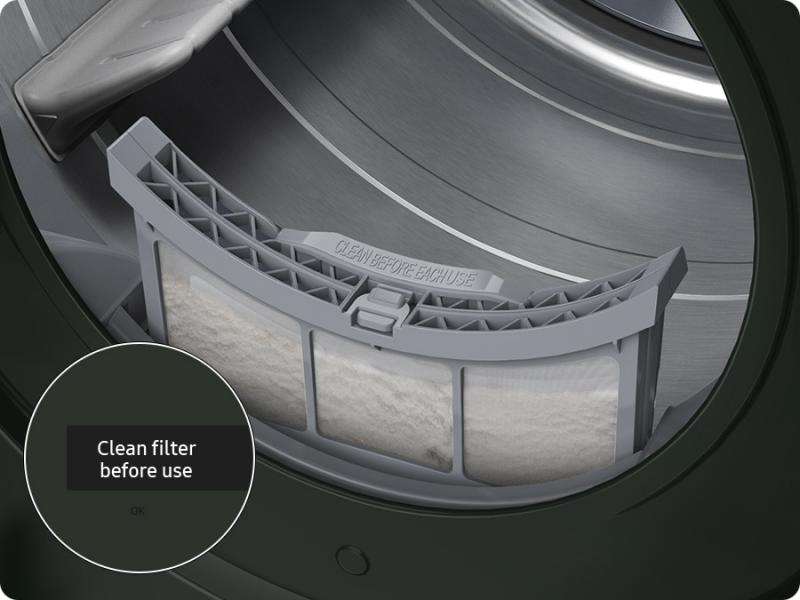

Lint Filter Alert
The control panel provides a helpful reminder to clean the filter to keep your dryer running smoothly.
ENERGY STAR® Certified
Smart energy savings

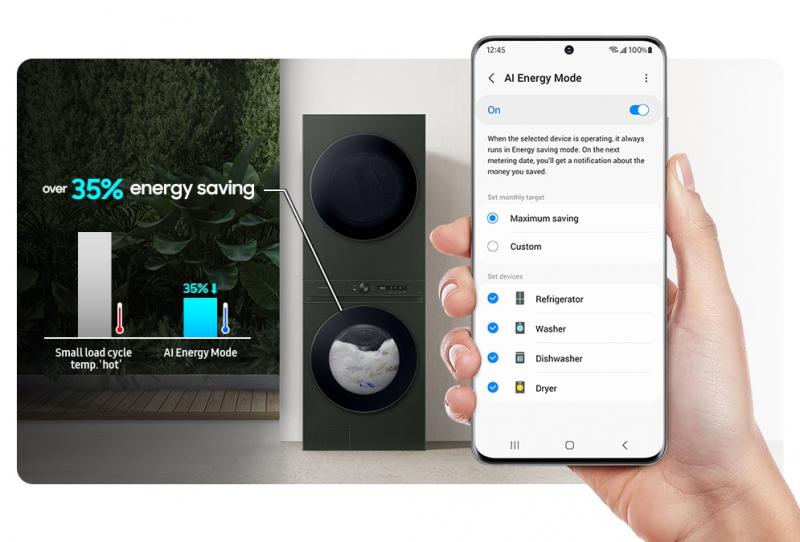

[Washer] SmartThings AI Energy mode
Monitor and reduce your energy use. AI Energy mode* lets you easily check the power consumption and estimates your electricity bill. For certain cycles**, it reduces energy use by over 35%*** with the same washing performance****, by reducing the use of a heater and increasing the cycle time.
* Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required. ** Can be applied on AI OptiWash, Super Speed, Small Load, Towels, Heavy Duty, Power Rinse cycle only when the selected washing temperature is 'hot'. *** Based on internal testing on the WF8900B model with IEC 8lb load except for Small Load cycle (IEC 4lb load). Results may vary depending on the actual usage conditions. **** It may reduce the washing performance on an AI OptiWash cycle with light laundry to support fabric care.
Purchase with confidence

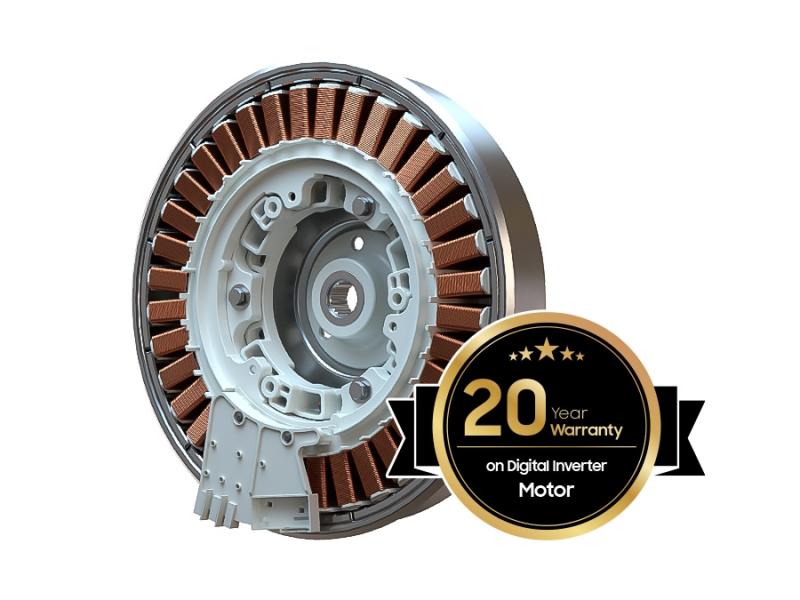

20-Year Motor Warranty*
Purchase Samsung Washers with confidence and receive a 20-year warranty on the Digital Inverter Motor.
* 20-year warranty limited to the Digital Inverter Motor of washers assembled in the USA purchased on 7/1/2022 or later. Purchase receipt indicating purchase date required for a claim. Additional restrictions and limitations apply, see warranty for details.

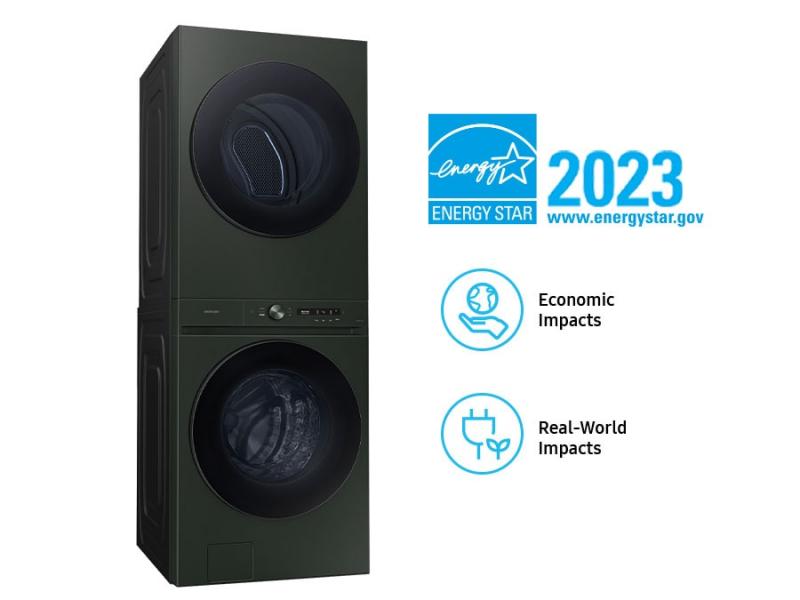

ENERGY STAR® certified
ENERGY STAR® Certified
ENERGY STAR® Certified,* so you use less energy with efficient performance.
* Visit www.energystar.gov for more information on ENERGY STAR® guidelines.

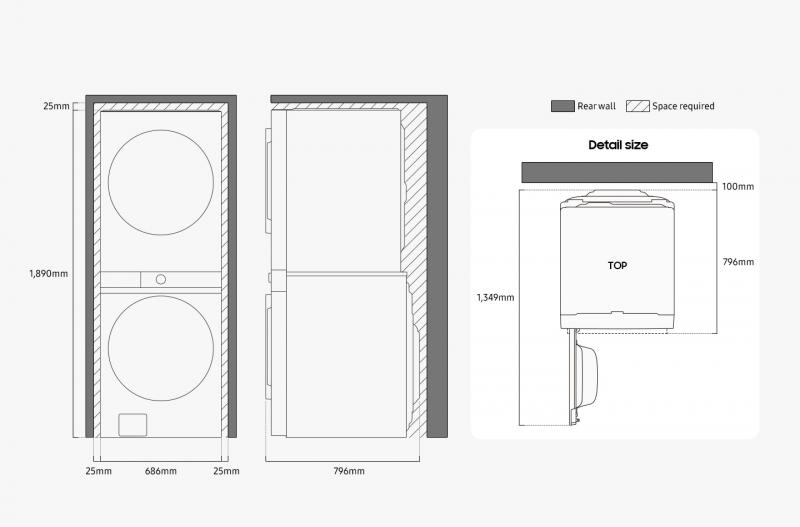

How to measure
How to measure
| Washing Capacity | |
|---|---|
| Washing Capacity | 5.3 cu.ft |
| Drying Capacity | |
| Drying Capacity (cu.ft) | 7.6 cu.ft |
| Design | |
| Body colour | Brushed Black |
| Door | Black Deco+Glass |
| Panel Display | Mono LCD + LED |
| Washer Performance | |
| Cycle time (min) | 45 min |
| Energy Efficiency Class | Tier 3 (Advanced Tier) |
| Energy Star Certification | Yes |
| Energy Star Most Efficient | No |
| Energy Consumption (annual) | 94 kWh/year |
| IMEF | 3.1 |
| IWF | 2.9 |
| Dryer Performance | |
| Cycle time (min) | 75 min |
| Energy Star Certification | Yes |
| DOE Energy Factor | 3.93 lb/kWh |
| Washer Feature | |
| Auto Dispense | No |
| AI OptiWash | No |
| Super Speed | No |
| Steam | Yes |
| Smart Control | Yes |
| Child Lock | Yes |
| Self Clean+ | Yes |
| Interior Drum Light | Yes |
| Internal Heater | Yes |
| Motor | DD |
| Spin Speed | 1200 rpm |
| Delay End | Yes |
| VRT | VRT Plus |
| Progress Indicator | Yes |
| Number of Soil Level | 5 EA |
| Number of Spin Level | 5 EA |
| Number of Temp. Level | 5 EA |
| Number of Cycle | 23 EA |
| Number of Option | 14 EA |
| Cycle List | Normal, Wool, Heavy Duty, Bedding, Perm Press, Delicates, Activewear, Wool, Towels, Eco Cold, Rinse+Spin, Self Clean+, Small Load, Colors, Spin Only, Denim, Steam Sanitize, Steam Allergen, Steam Normal, Power Steam, Steam Whites, Steam Bulky, Power Rinse |
| Option List | Pre Soak, Extra Rinse, My Cycles, Delay End, Smart Control, Drum Light, Child Lock, AI Pattern, Calibration, Self Diagnosis, Volume, Language, Wi-Fi, Factory Reset |
| Dryer Feature | |
| AI Optimal Dry | No |
| Super Speed | No |
| Steam | No |
| Vent Sensor | Yes |
| Smart Control | Yes |
| Child Lock | Yes |
| Interior Drum Light | Yes |
| Reversible Door | No |
| Drying Rack | No |
| Dual Heater | Yes |
| Filter Check Indicator | Yes |
| Mixed Load Bell / Damp Alert | Yes |
| My Cycles | Yes |
| Vent Exhaust (Electric/Gas) | 3 ways |
| Wrinkle Prevent | Yes |
| Progress Indicator | Yes |
| Number of Drying Level | 5 EA |
| Number of Temp. Level | 5 EA |
| Number of Time Level | 9 EA |
| Number of Cycle | 16 EA |
| Number of Option | 13 EA |
| Cycle List | eco Normal, Normal, Heavy Duty, Towels, Perm Press, Activewear, Bedding, Delicates, Wool, Saniztize, Shirts, Denim, Time Dry, Air Fluff, Quick Dry, Rack Dry |
| Option List | Damp Alert, Wrinkle Prevent, My Cycles, Smart Contol, Eco Dry, Drum Light, Child Lock, Volume, AI Pattern, Wi-Fi, Language, Vent Blockage Test, Factory Reset |
| Physical specifications & size | |
| Net Dimension (WxHxD) | 27 x 74.4 x 31.3 mm |
| Net Weight | 320 lbs |
| Gross Dimension (WxHxD) | 29.4 x 81.9 x 34.1 inch |
| Gross Weight | 331 lbs |
| Washer Voltage/Frequency | 120V / 60Hz |
| Dryer Voltage/Frequency | 120V / 240V / 60Hz |
| Washer Drum Material | Stainless Steel |
| Dryer Drum Material | Powder Coat (Gray) |
| Smart | |
| WiFi Embedded | Yes |
