Features
Quick Boil Element
Get meals to the table faster with the powerful 3,000W Quick Boil element.

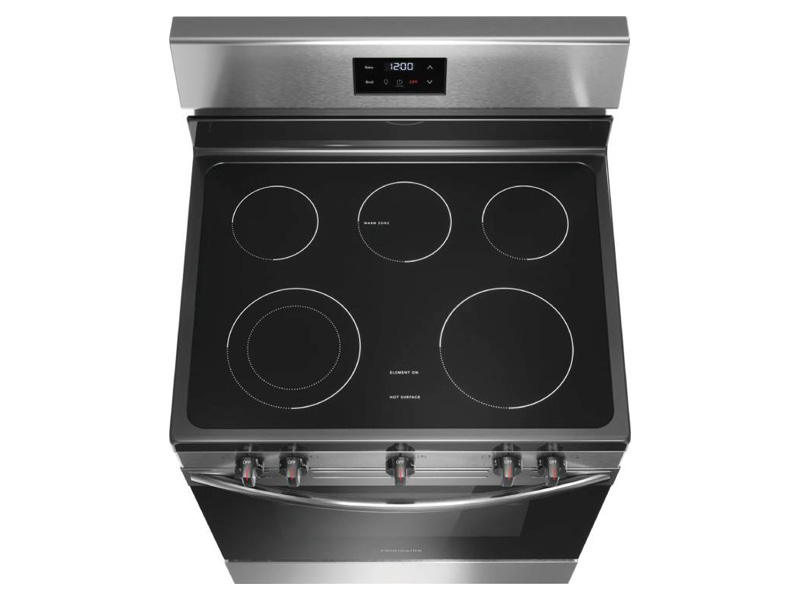

Flexible Five Element Cooktop
Experience ultimate cooking flexibility with a cooktop that has five elements designed to handle all of your cooking needs.
Even Baking Technology
Designed to deliver even baking results, every time.

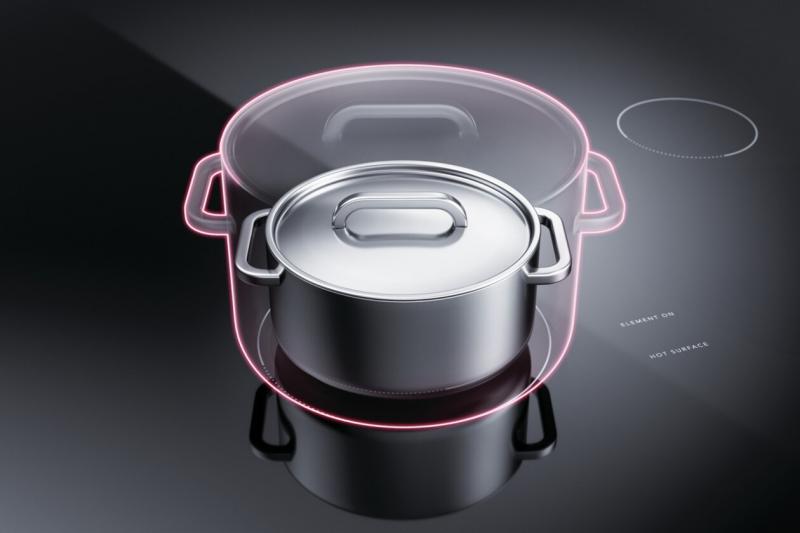

SpaceWise Dual Expandable Element
Get two elements in one with the Dual Expandable element - a 6" inner ring for smaller pots and pans and a 9" outer ring for larger cookware.

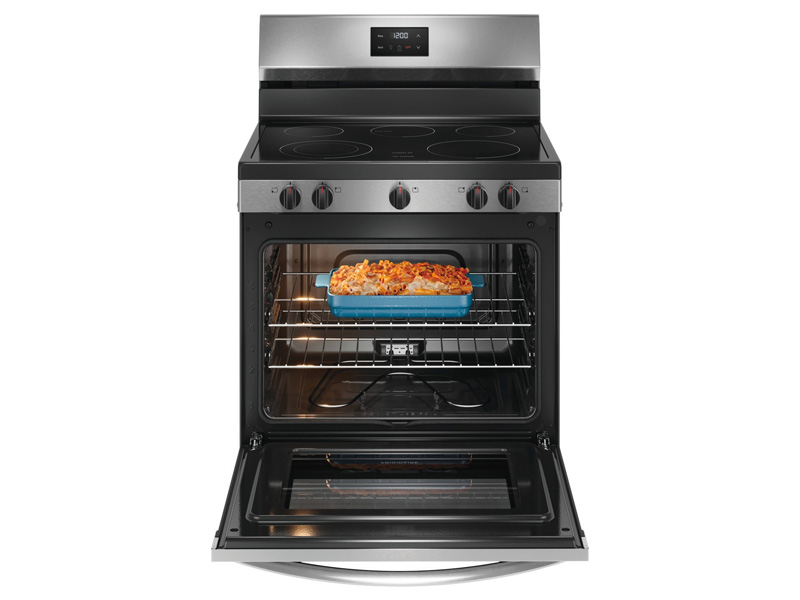

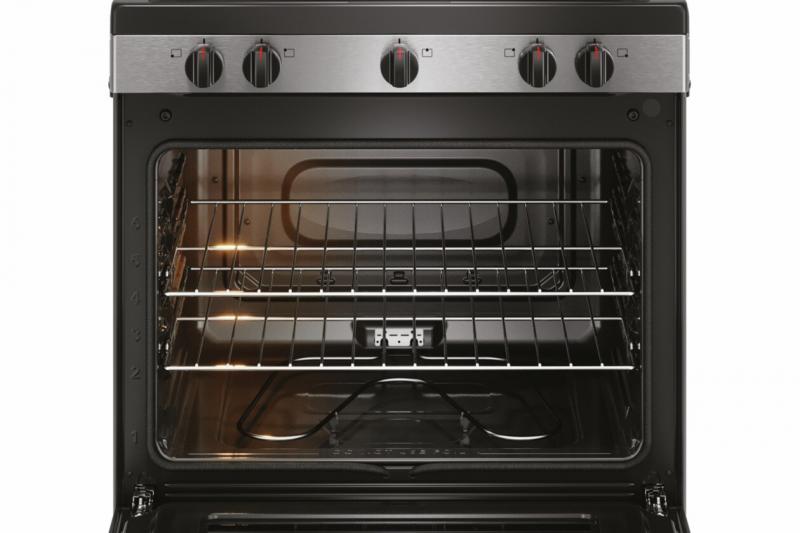

5.3 Cu. Ft. Oven Capacity
Large 5.3 cu. ft. oven capacity allows you to cook more at once.

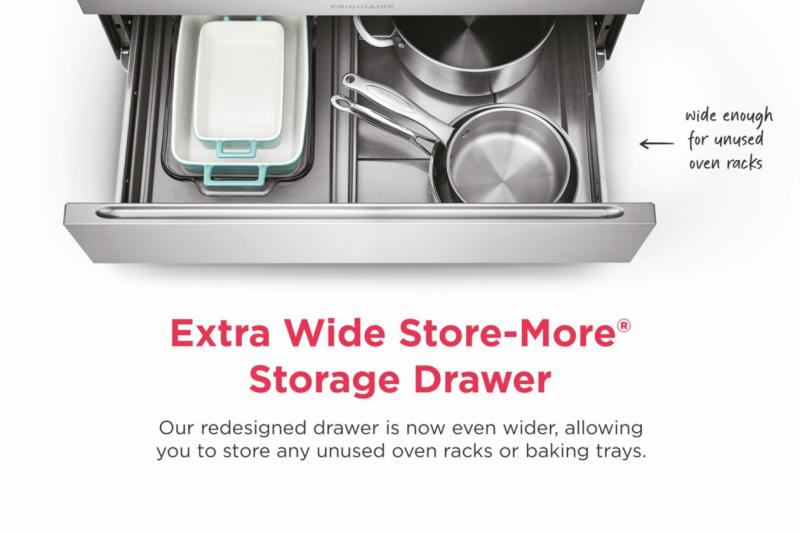

Extra Wide Store-More Storage Drawer
Our redesigned Store-More Storage drawer is now even wider - allowing you to store any unused oven racks, baking trays and more!
Cooktop Keep Warm Zone
Keep food warm until everything - and everyone - is ready.
| Dimensions and Volume | |
|---|---|
| Maximum Height | 47 3/4 |
| Minimum Height | 46 3/4 |
| Width | 30 |
| Depth | 26 |
| Depth With Door 90° Open | 47 5/16 |
| Depth With Handle | 28 1/2 |
| Oven Interior Height | 18 1/8 |
| Oven Interior Width | 25 3/16 |
| Oven Interior Depth | 19 7/8 |
| Capacity | 5.3 Cu. Ft. |
| Display | |
| Display Type | LED |
| Display Interface Color | White |
| Control Location | Rear |
| DRAWER | |
| Drawer Type | Storage |
| Drawer Handle Style | Integrated |
| OVEN | |
| Rack Type 1 Quantity | 2 |
| Rack Type 1 | Flat |
| Rack Position Type | Embossed |
| Oven Light Watts | 40 Watts |
| Oven Light Type | Halogen |
| Oven Light Quantity | 1 |
| Oven Interior Color | Midnight Black |
| Number of Rack Positions | 6 |
| Broil Element Pass | 4 |
| Broil Element | 3000 Watts |
| Bake Element Type | Raised |
| Bake Element Pass | 4 |
| Bake Element | 2600 Watts |
| Cooking Controls Function | |
| Program Fahrenheit or Celsius | Yes |
| Cooking Controls | |
| Warm Zone | Yes |
| Up / Down Arrow | Yes |
| Preheat | Yes |
| Oven Light | Yes |
| Off | Yes |
| Kitchen Timer | Yes |
| Broil | Yes |
| Bake | Yes |
| Cooktop Performance | |
| Keep Warm Burner Location | Center Rear |
| Center Rear Element Burner | 100 Watts |
| Left Rear Element Burner | 1200 Watts |
| Left Front Element Burner (Large) | 3000 Watts |
| Left Front Element Burner (Small) | 1400 Watts |
| Right Rear Element Burner | 1200 Watts |
| Right Front Element Burner | 3000 Watts |
| Left Rear Element Burner Size | 6 |
| Left Front Element Burner Size (Large) | 9 |
| Left Front Element Burner Size (Small) | 6 |
| Right Rear Element Burner Size | 6 |
| Right Front Element Burner Size | 9 |
| COOKTOP | |
| Hot-Surface Indicator Light | Yes |
| Element On Indicator Light | Yes |
| Cooking Surface Type | Smooth |
| ELECTRICAL SPECIFICATIONS | |
| Connected Load @ 240V | 12 kW |
| Minimum Circuit Required | 40 Amps |
| Voltage Rating | 240 V |
| Installation | |
| Adjustable Leveling Legs | Yes |
| Power Cord Included | Yes |
| General Specifications | |
| Frigidaire Fit Promise | Yes |
| Product Weight | 160 lbs |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Safety Certifications and Approvals | |
| UL Listed | Yes |
